High Head Pump Applications and Use Cases

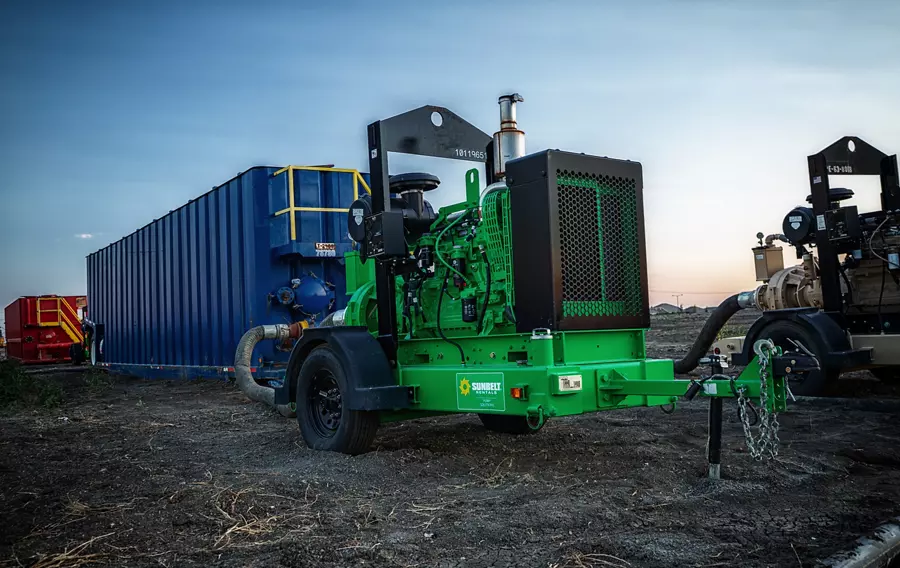

What Is a High Head Pump?
A high head pump is a specialized centrifugal unit designed to generate high pressure to lift fluid vertically or push it through long pipelines. Standard dewatering pumps prioritize volume, or flow, while high head pumps prioritize pressure to overcome resistance.
Engineers call this resistance total dynamic head (TDH). TDH measures the total equivalent height that fluid must be pumped, accounting for vertical lift and friction loss inside the pipe. The mechanism relies on increasing the velocity of the fluid to generate this force. By spinning the impeller at higher speeds or using a larger diameter impeller with tighter internal clearances, the pump converts kinetic energy into significant pressure head.
A standard trash pump might move thousands of gallons on flat ground, but it will fail if it needs to push that same water up a 300-foot slope. High head pumps feature heavy-duty impellers and volutes that create the force needed to move heavy liquids, sludge, or water against significant gravity.
These pumps become essential when job site geometry demands lifting fluid to great heights or pushing it through thousands of feet of discharge hose.
Types of High Head Pumps
Commercial high-head pump rentals vary by power source, discharge size, and solids handling. Start with the pump curve charts below, where head (feet) runs up the vertical axis and flow (gpm) runs along the bottom. Find the flow your job needs, move up to the pump’s curve, and read the head at that point. Remember, that has to cover total dynamic head once you account for vertical lift and friction loss through the discharge hose or pipe.

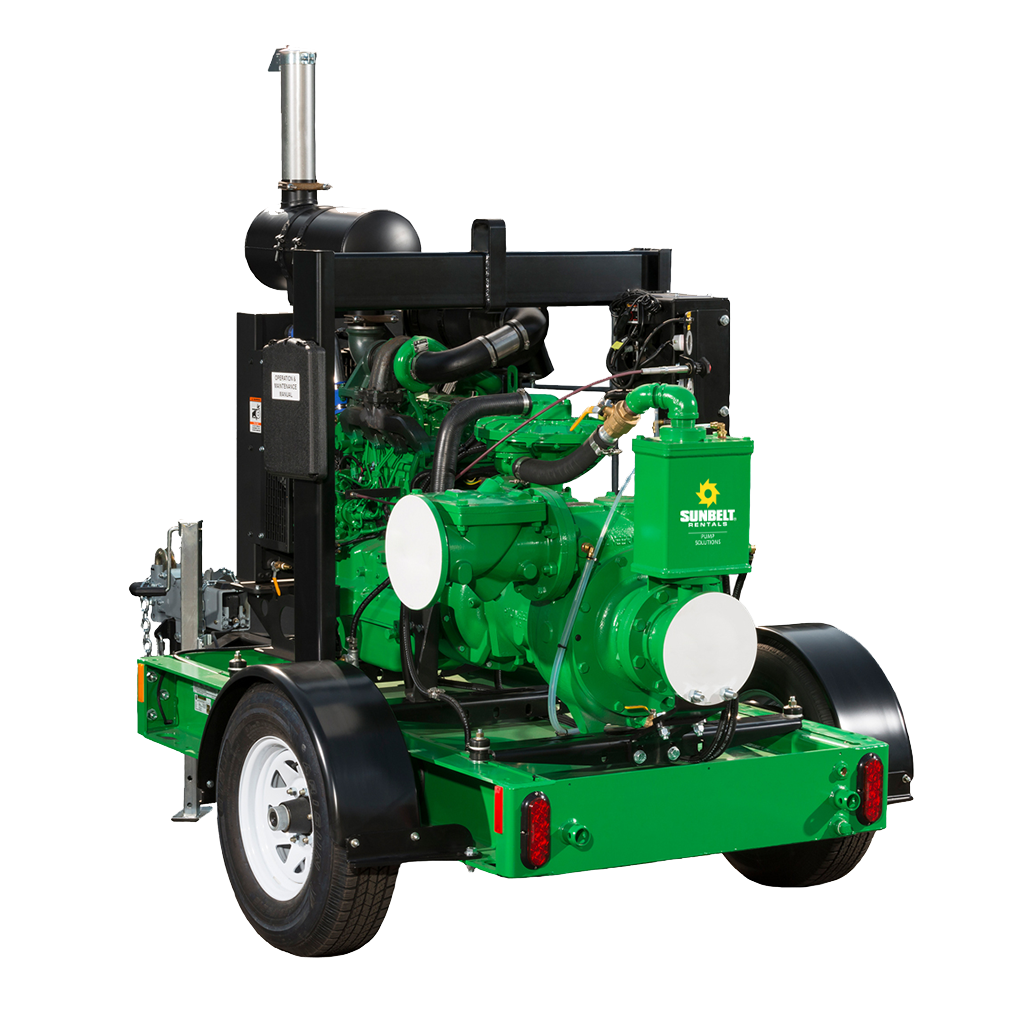

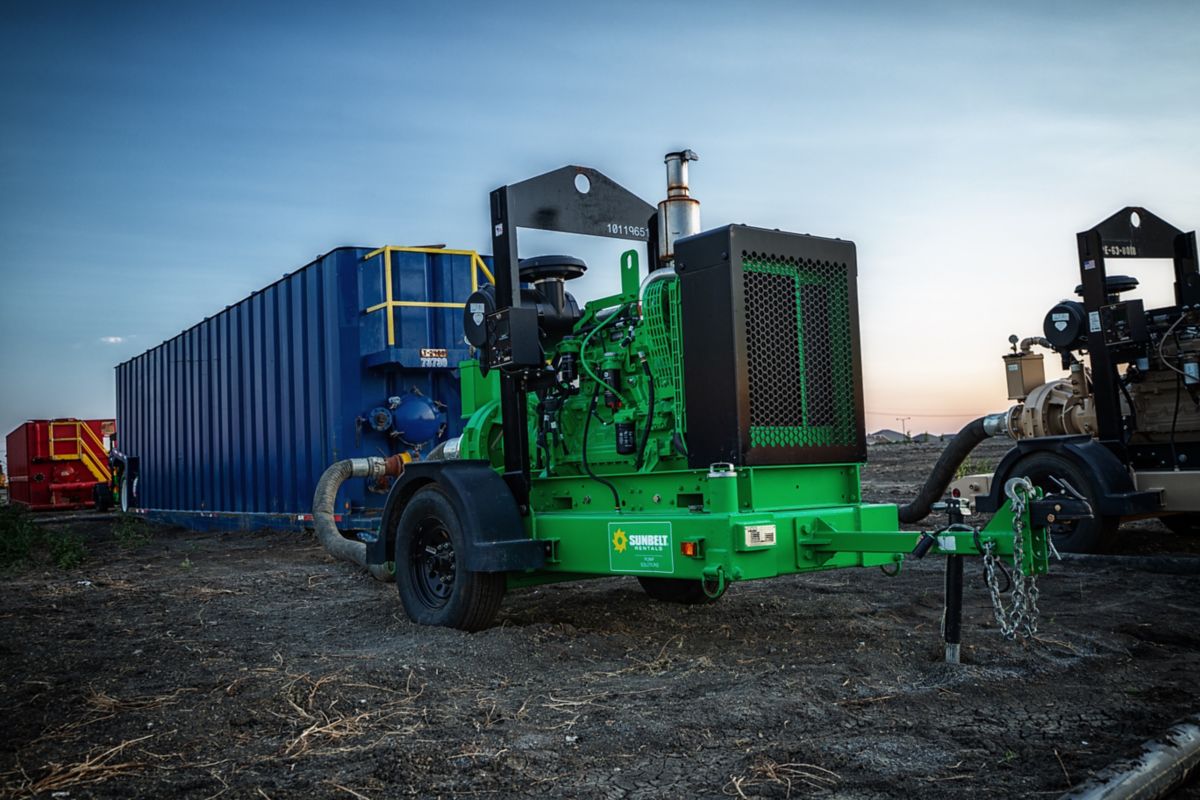

Diesel-driven high head pumps serve as the industry standard for outdoor and remote sites. Sunbelt’s Diesel-Powered 6-Inch x 4-Inch High Head Pump is rated to pump water with solid content up to .75 inches, with 1,800+ GPM max capacity and 300 PSI max operating pressure, and it includes auto start controls.

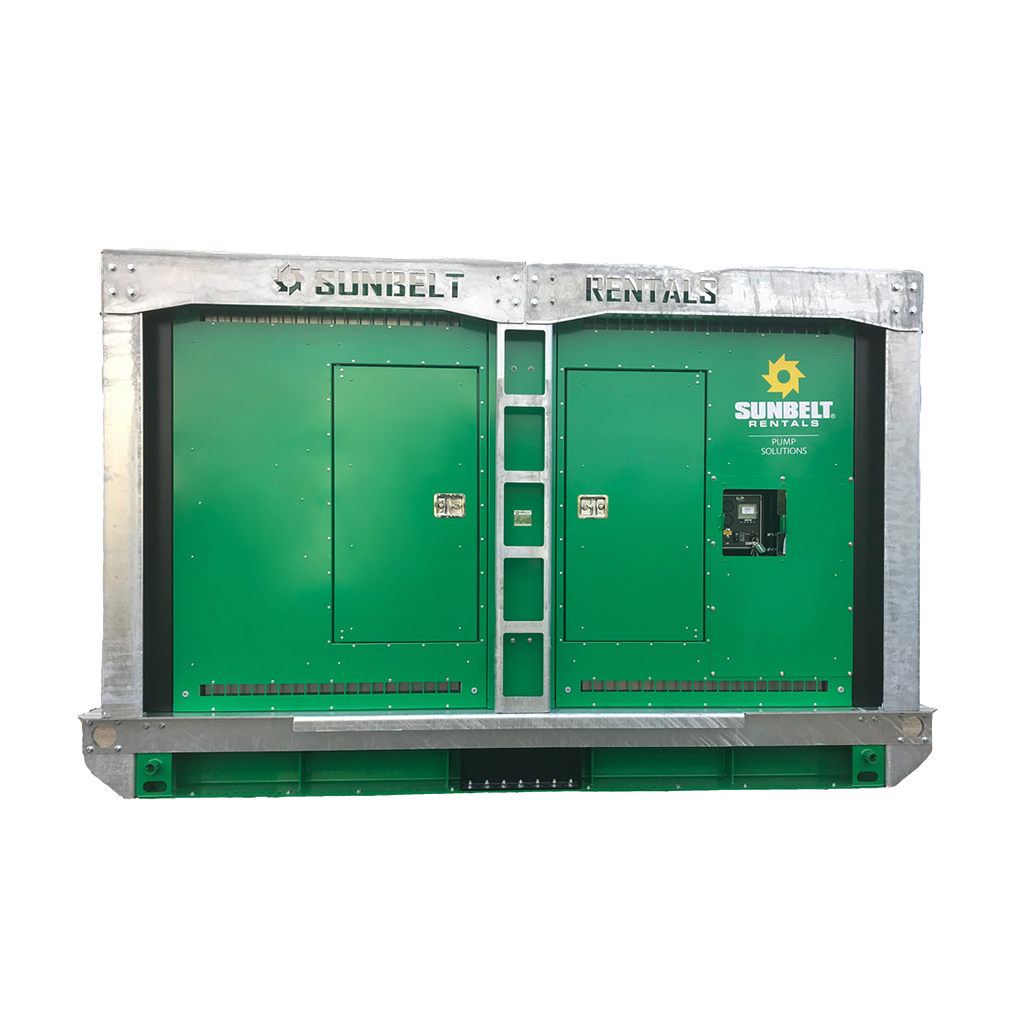

Need high head with lower jobsite noise? Our 10-Inch x 8-Inch High Head Silent Pump comes in a sound-attenuated, skid-mounted package with automatic start/stop capability. It delivers up to 4,000 GPM, with 360 feet max head.
Electric and Silent High Head Pumps can provide cleaner, quieter alternatives. The 6-Inch x 4-Inch High Head Electric Pump uses a closed design impeller and diffuser to generate high discharge pressure, runs a continuously operating priming system, and includes automatic start/stop capability. It isn’t designed for large solids, so it fits head-driven applications like quarries and forced mains where TDH requirements run higher than 75 feet.

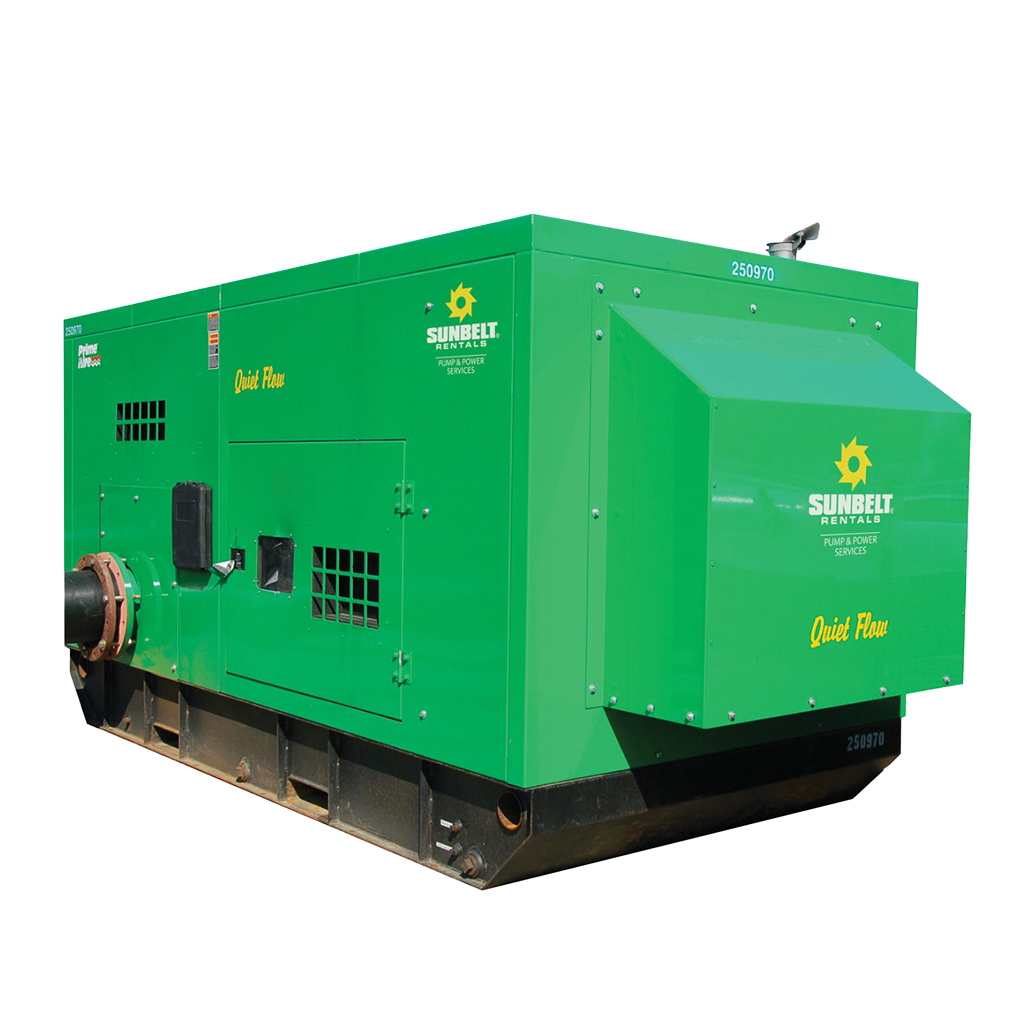

For massive moves in noise-sensitive areas, our 12-Inch Diesel Hi-Volume Silent Pump is built to move water fast while staying quiet. It handles solids up to 3 inches, delivers 8,500+ GPM max capacity, and runs with ultra-quiet operation, with 200 feet max head.
Before you reserve, use the pump curve chart to confirm your working point, then verify the documentation for the exact unit you’re selecting.

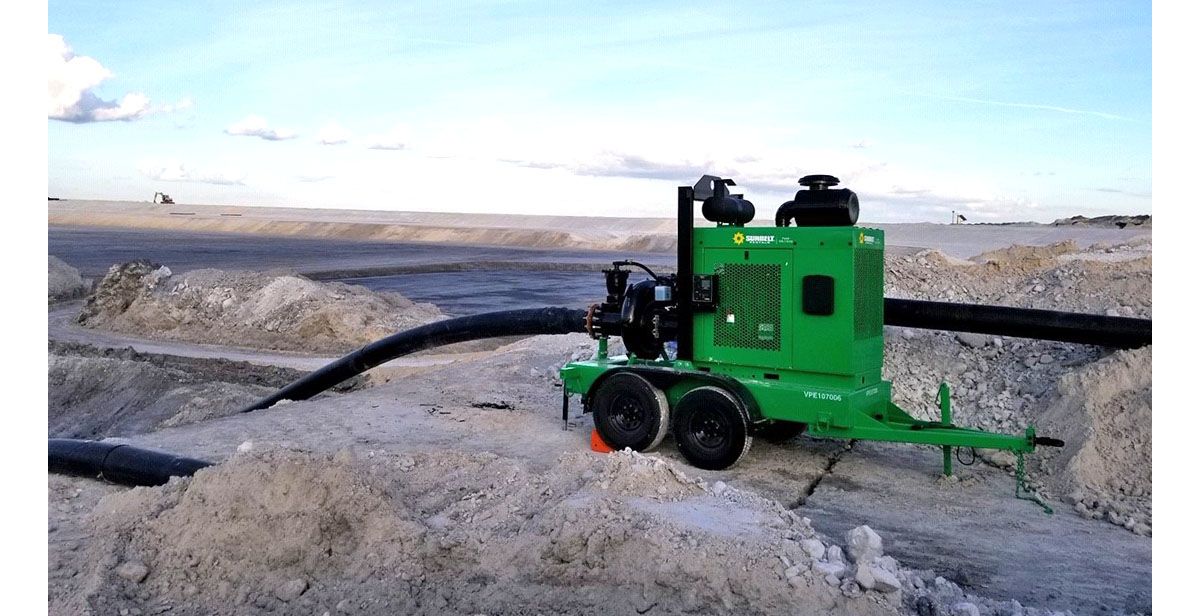

Mining Equipment Applications

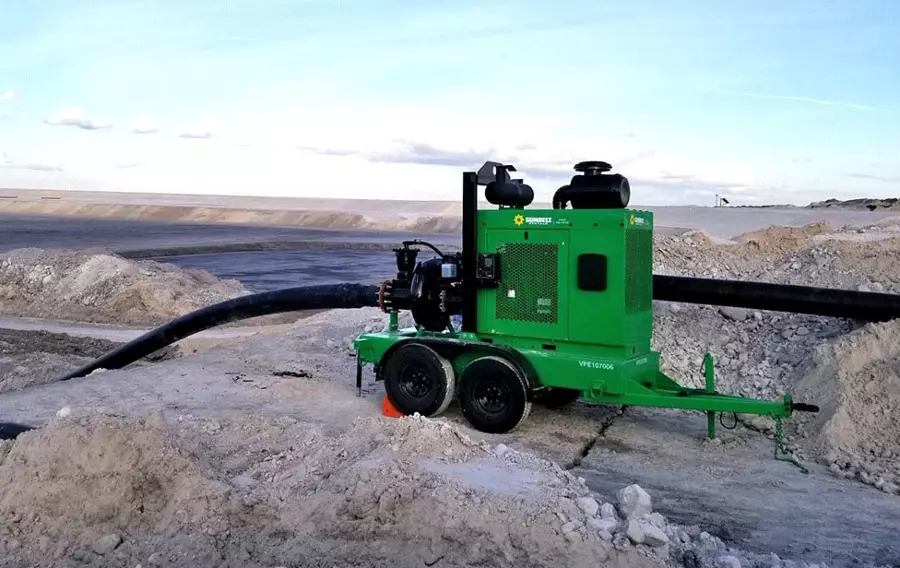

Mining operations rely on high head pumps to dewater deep open-pit mines and quarries where water must be lifted hundreds of feet vertically. The robust construction of these pumps handles the abrasive nature of mine water while providing the necessary lift to reach the surface.
Civil and Commercial Construction

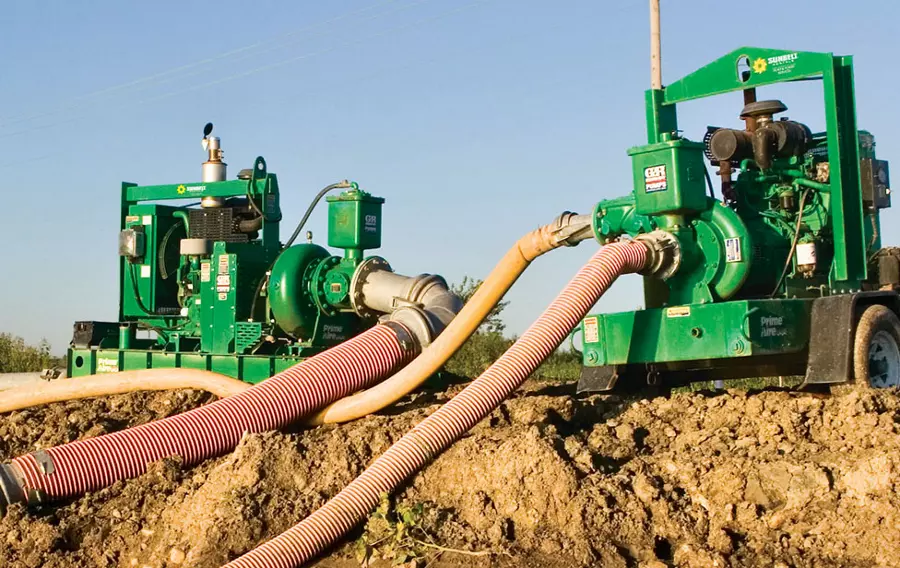

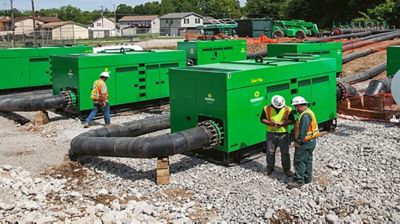

Construction teams utilize these pumps for jetting piles, washing down heavy equipment with high pressure, and bypassing sewer lines during repairs. Moving water from a deep excavation site to a distant discharge point often requires the pressure capabilities only a high head unit can provide.

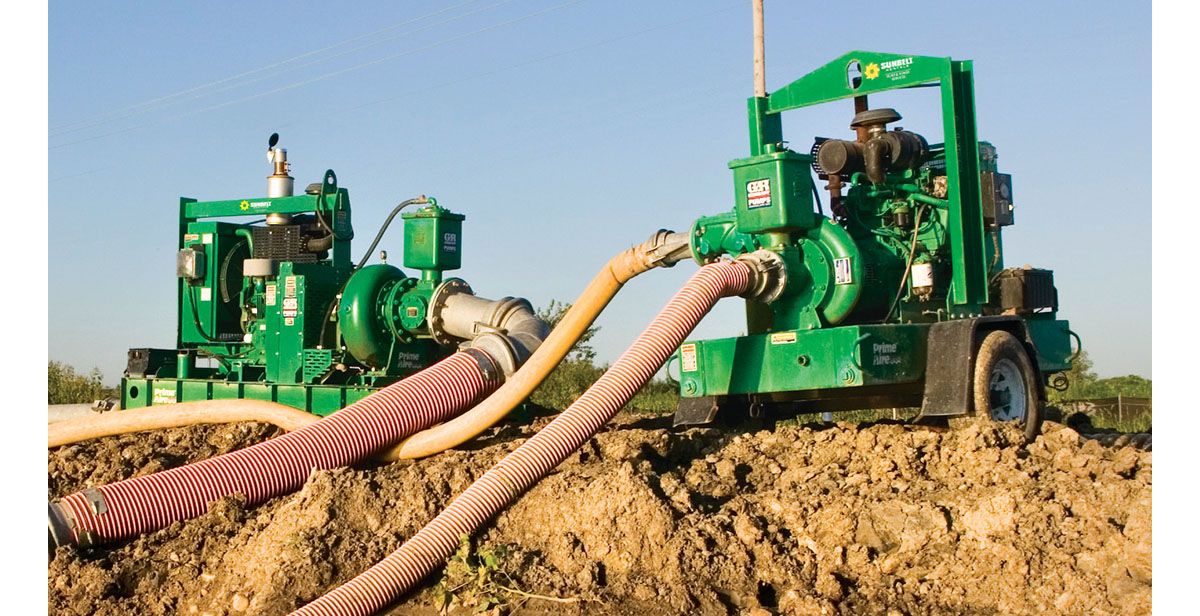

Oil and Gas Equipment
Oil and gas sites use high head pumps for pipeline pressure testing, fluid transfer over long distances, and supplying water for fracking operations. Maintaining consistent pressure over miles of pipe is critical for these applications to stay safe and efficient.

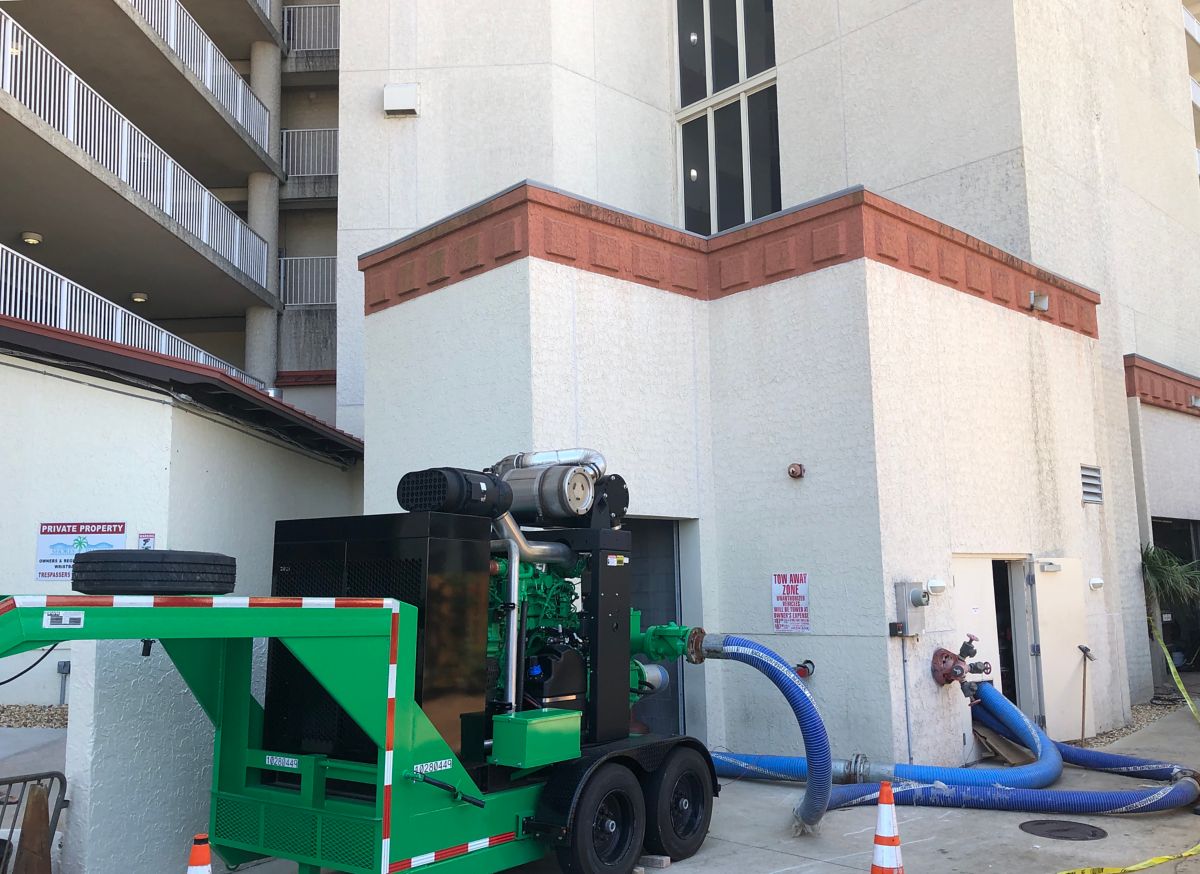

Utility Services

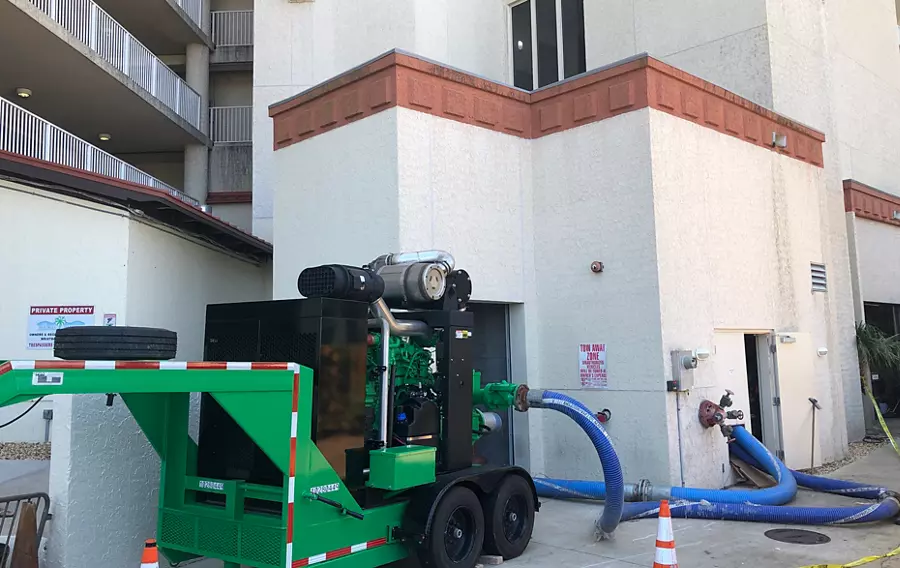

Municipalities and utility providers deploy high head pumps for emergency fire protection, boosting water main pressure during outages, and temporary bypass pumping during treatment plant upgrades. These critical applications demand reliability and the ability to integrate seamlessly into pressurized systems.
Benefits of Renting a High Head Pump for Commercial Use
Renting a high head pump offers distinct advantages over purchasing, specifically when it comes to cost management, logistical support, and access to expertise.
