CAT CLASS:
0450420

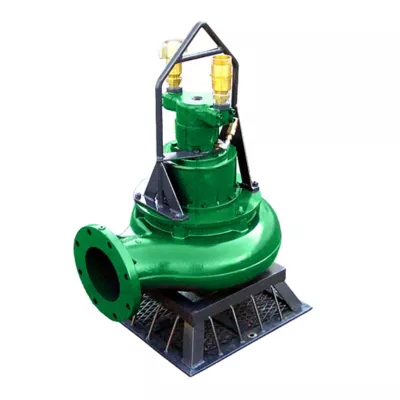

8" Hydraulic Pump Head 100 HP
Overview
This 8" Hydraulic Pump Head is ideal for applications requiring a suction lift greater than 25' and with high solids concentration. This pump head is the trash/sludge type, which is ideal for pumping water containing mud, sticks and other foreign materials. This unit has a discharge of 8" and a matching power unit of 100HP. This model has a max GPM of 4,000 and a hydraulic flow of up to 62 GPM. Please use eye protection and gloves when using this model.
Specifications
Products are subject to availability.
| Make | Gulf Atlantic | N.A. |
| Model | 2-50 x 8-100 | N.A. |
| Discharge | 8" | N.A. |
| Hydraulic Flow | 62 GPM | N.A. |
| Matching Power Unit | 100 HP | N.A. |
| Max GPM | 4000 | N.A. |
| Max Head | 58 ' | N.A. |
| Max Solids | 4.5" | N.A. |
| Type | Trash/Sludge | N.A. |
| Weight | 730 lbs | N.A. |
Safety information
Safety Requirements
- Eye Protection
- Gloves
