CAT CLASS:
0410240

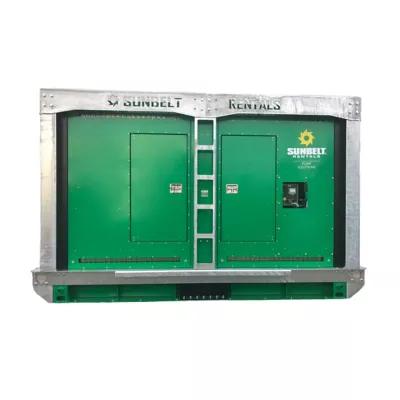

8" Diesel Automatic-Priming Silent Pump
Overview
An innovation in the pumping world, our 8” silenced diesel trash pumps have set an industry standard in both performance and environmental protection. These units boast outstanding sound attenuation, making them perfect for any application where noise is a consideration. They’re also self-contained, protecting against any possible engine, fuel or coolant leaks.
Specifications
Products are subject to availability.
| Consump# Full Load | 5.8 GPH | 5.8 GPH |
| Diesel Engine | N.A. | John Deere 4045H |
| Dry Weight | 7,000 lbs. | N.A. |
| Engine | John Deere 150 HP | N.A. |
| HP | N.A. | 185 |
| Max GPM | 4100 | 4100 |
| Max Head | 158 ' | 158 ' |
| Max Solids | N.A. | 3" |
| Mounting Type | N.A. | Skid1 |
| Onboard Fuel Cap | 135 gal. | 135 gal. |
| Overall Dimensions | 145"L x 60"W x 89"H | 145"L x 60"W x 89"H |
| Run Time Full Load | 28.4 hrs. | 28.4 hrs. |
| Suction x Discharge | 10" x 8" | 10" x 8" |
| Type | 10" QF2 | 10" QF |
| Weight_Wet/Dry | N.A. | 8,166/7,000 lbs. |
Safety information
Safety Requirements
- Eye Protection
- Gloves
