CAT CLASS: 1551115

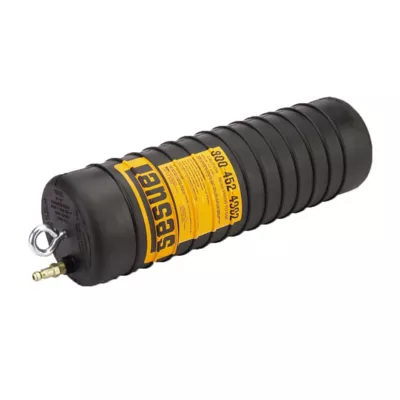

6" x 10" Sewer Plug

Overview

Sewer plugs are used to block off pipelines during bypass, rehabilitation and maintenance applications. The plug is positioned inside the pipeline and then expanded to fit using compressed air from an outside source. Plug accommodates pipeline with 6’’ to 10’’ diameter. Made with domehead feature to inflate and expanded to fill pipeline.

Specifications

Products are subject to availability.

Model 060-610-0
Bypass Flow-Thru NA
Diameter 5"
Length 1.5833 '
Max Back/Test 15 PSI
Max Pipe Dia 10.25"
Min Pipe Dia 5.25"
Pipe Range 6" - 10"
Required Inflation 30 PSI
Type Domehead
Weight 5 lbs

Safety information

Safety Requirements
  • Eye Protection
  • Safety Shoes
  • Gloves
