CAT CLASS:
0450230

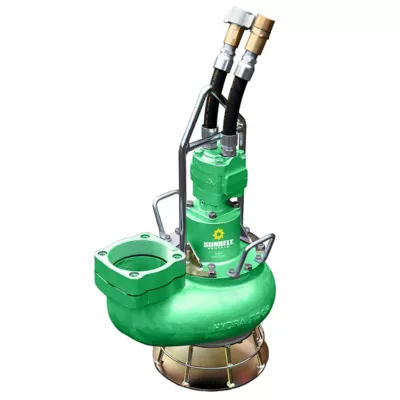

4" Hydraulic Pump Head 60 HP
Overview
Submersible pumps are ideal for applications requiring a suction lift greater than 25' and with high solids concentration. This pump head is the trash/sludge type, which is ideal for pumping water containing mud, sticks and other foreign materials. These units have a discharge of 4" and a matching power unit of 60HP.
Specifications
Products are subject to availability.
| Make | Gulf Atlantic | Hydratech |
| Model | 2-32 x 4-30 | ST4 |
| Discharge | 4" | 4" |
| Hydraulic Flow | 41 GPM | 16 GPM |
| Matching Power Unit | 60 HP | 36 HP |
| Max GPM | 1100 | 800 |
| Max Head | 115 ' | 110 ' |
| Max Solids | 3" | 3" |
| Type | Trash/Sludge | Trash |
| Weight | 135 lbs | 140 lbs |
Safety information
Safety Requirements
- Eye Protection
- Gloves
