CAT CLASS: 1551135

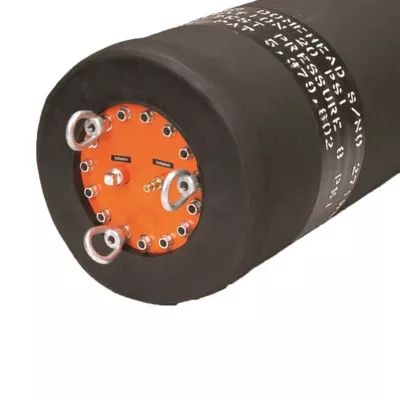

12" x 18" Sewer Plug

Overview

Sewer plugs are used to block off pipelines during bypass, rehabilitation and maintenance applications. The plug is positioned inside the pipeline and then expanded to fit using compressed air from an outside source. Plug accommodates pipeline with 12’’ to 18’’ diameter. Made with domehead feature to inflate and expanded to fill pipeline.

Specifications

Products are subject to availability.

Model 060-1218-0
Bypass Flow-Thru NA
Diameter 11"
Length 2.5000 '
Max Back/Test 15 PSI
Max Pipe Dia 18.25"
Min Pipe Dia 11.5"
Pipe Range 12" - 18"
Required Inflation 20 PSI
Type Domehead
Weight 29 lbs

Safety information

Safety Requirements
  • Eye Protection
  • Safety Shoes
  • Gloves
