CAT CLASS: 1150570

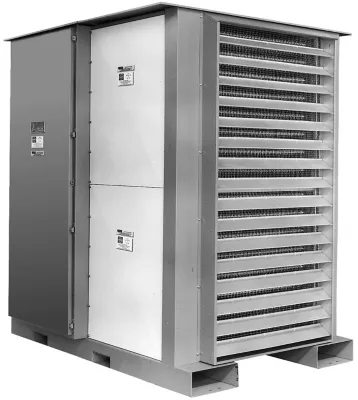

DC Load Bank 375/750V 2300 kW

Overview

The 2300 kW DC Load Bank is a portable, self contained unit that simulates DC electrical loads. The unit provides DC resistive loading up to 6133 amps @ 375 VDC and 3066 amps @ 750 VDC for a total of 2300 kW @ 375/750 VDC. The available load steps are 5/10/10/25/50/100/100/200/200/400/400/400/400 kW @ 375/750 VDC.

Safety information

Safety Requirements
  • Gloves
