CAT CLASS:
1091301

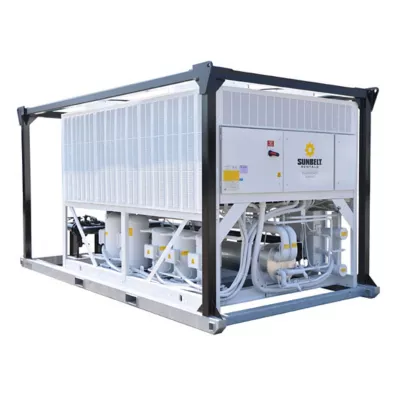

Electric 100-Ton Low-Temperature Chiller System
The Electric 100-Ton Low-Temperature Chiller System is a versatile, self-contained solution for temporary fluid cooling needs. Ideal for demanding industrial and commercial applications due to its freeze protection down to -20 degrees Fahrenheit, the unit operates on a 3-Phase, 460-volt electric power supply. It has a dual-circuit design for optimal staging and efficiency.
Products are subject to availability.
| Make | CAPS |
| Model | PCHH-100tc |
| Flow Range | 100-385 CFM |
| Max Refrigerant Side Pressure, PSIG | 450 |
| Max Water Side Pressure, PSIG | 150 |
| Max. Overcurrent Protection (MOCP) | 250 |
| Min Circuit Ampacity | 244 MCA |
| Overall Dimensions | 204 1/2"L x 101 1/2"W x 102"H |
| Power Requirements | 460V / 3PH / 60HZ |
| Water Volume, Gals. | 51 |
| Weight | 11,000 lbs. |
- Eye Protection
- Gloves
Sunbelt offers a variety of compatible accessories, add-ons and PPE equipment to add to your rental. Availability may vary based on location.
