CAT CLASS:
0360330

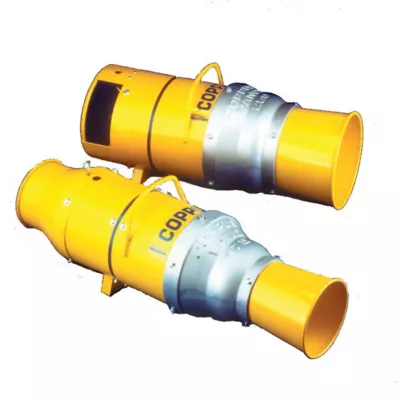

8" 1500 CFM Explosion Proof Fan
Overview
This fan is utilized to ventilate manholes and other confined spaces in hazardous atmospheres, providing fresh air and removing fumes. The fan features explosion-proof electric motors and spark-proof housings. The explosion proof fan operates at 1500 CFM (cubic feet per minute). It operates on 115V power and utilizes flexible duct to direct airflow. The fan is equipped with 8’’ intake and exhaust ducting.
Specifications
Products are subject to availability.
| Make | Coppus |
| Model | VANO 175CV-EP |
| Exhaust Duct | 8" |
| HP | 3/4 |
| Hazardous Location Classifications | Class I, Div. 1, Group D; Class II, Div. 1, Groups E, F, G* |
| Intake Duct | 8 " |
| Max CFM Hi/Lo | 1,500 |
| Weight | 73 lbs |
Safety information
Safety Requirements
- Eye Protection
