CAT CLASS: 0060130

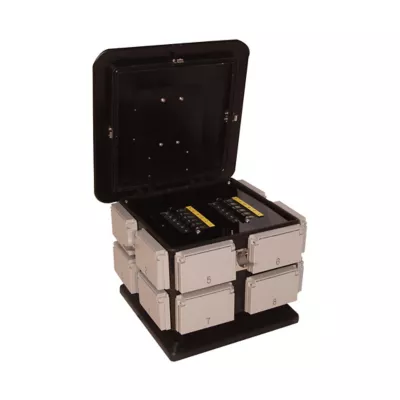

100 Amp Duplex Distribution Panel

Overview

100 AMP Portable distribution panels provide multiple power outlets from a 208V 3-phase or 240V single-phase power source for operating power tools, work lights and other equipment. Several types of panels that accommodate various voltage and outlet requirements are available.

Specifications

Products are subject to availability.

Make N.A. Lex Products
Model N.A. DBS100DP-A4GFI
Description 100A Duplex Panel 100A GFCI Duplex Panel
Dimensions N.A. 11"L x 11"W x 13"H
GFCI true false
Power Input 100A, 208V 3ø 100A 3ø 120/208V 5 wire male cam
Power Outlets (12) 20A, 120V 1ø (12) NEMA 5-20 20A 2P3W 125V GFCI duplex receptacles
Weight 65 lbs 33 lbs

Safety information

Safety Requirements
  • Gloves
