CAT CLASS: 0440408

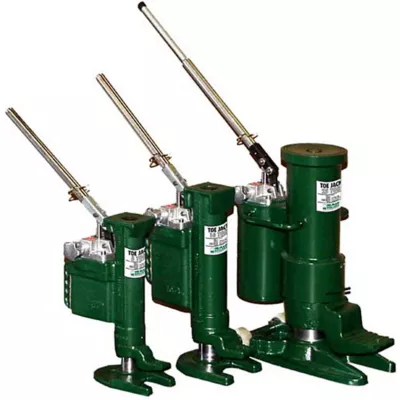

8.5 Ton Hydraulic Toe Jack

Overview

A toe jack that allows lifting heavy equipment with a minimum available clearance as low as 0.79". The unit has a capacity of 8.5 tons with a maximum lift height of 5.39". This model features 3-position lifting points and include two extendable support feet for added stability. This type of unit requires an external hydraulic pump.

Specifications

Products are subject to availability.

Make Enerpac
Model SOH-10-6
Capacity 8.5 ton
Retracted Toe Clearance - Max 6.69"
Retracted Toe Clearance - Mid 3.74"
Retracted Toe Clearance - Min .79"
Weight 59.2000 lbs

Safety information

Safety Requirements
  • Gloves
  • Safety Shoes
