CAT CLASS: 0440420

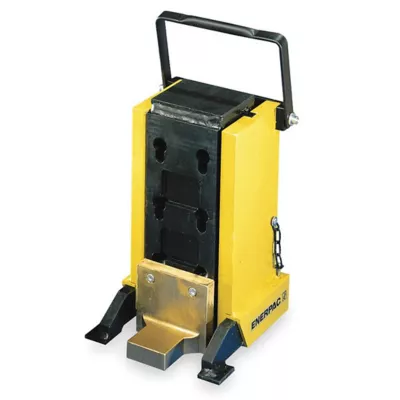

20 Ton Hydraulic Toe Jack

Overview

A toe jack that allows lifting heavy equipment with a minimum available clearance as low as 1.18". The unit has a capacity of up to 25 tons with a maximum lift height of 19.88".

Specifications

Products are subject to availability.

Make Enerpac Hillman
Model SOH-23-6 HTJ-25
Capacity 20 ton 25 ton
Max Lift Height 6.18" 11.5"
Retracted Toe Clearance - Max 7.48" 19.88"
Retracted Toe Clearance - Mid 4.33" NA
Retracted Toe Clearance - Min 1.18" 2.38"
Weight 99 lbs 208 lbs

Safety information

Safety Requirements
  • Gloves
  • Safety Shoes
