CAT CLASS:
0440410

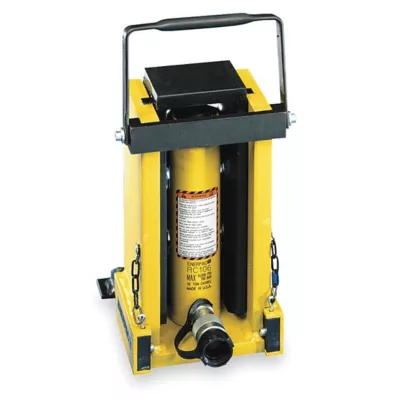

10 Ton Hydraulic Toe Jack
Overview
A toe jack that allows lifting heavy equipment with a minimum available clearance as low as 1.06". The unit has a capacity of 10 tons with a maximum lift height of 10.25". This model features a built in hand pump and two lifting points, at the top and toe of the jack. All lifting points swivel independently, which is ideal for working in confined spaces.
Specifications
Products are subject to availability.
| Make | Enerpac | Hillman |
| Model | SOH-10-6 | HTJ-10 |
| Capacity | 8.5 ton | 10 ton |
| Max Lift Height | 5.39" | 10.25" |
| Retracted Toe Clearance - Max | 6.69" | 16.5" |
| Retracted Toe Clearance - Mid | 3.74" | NA |
| Retracted Toe Clearance - Min | .79" | 1.06" |
| Weight | 59 lbs | 69 lbs |
Safety information
Safety Requirements
- Gloves
- Safety Shoes
