CAT CLASS:
0810680

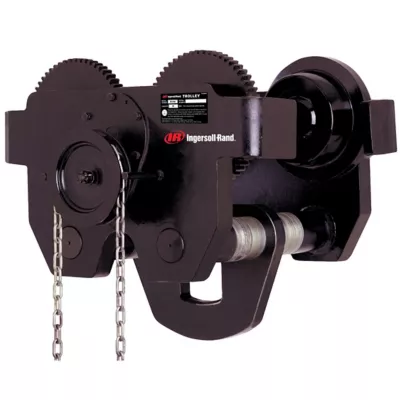

10 Ton Geared Beam Trolley
Overview
This 10 ton geared beam trolley provides a convenient means to suspend chain hoists from an overhead beam and provide horizontal travel. The trolley adjusts easily to fit any beam flange within range. Dual tread wheels allow use on flat or tapered flange beams and the wheels run on sealed ball bearings for long life and low maintenance.
Specifications
Products are subject to availability.
| Make | Harrington Hoist | Ingersoll-Rand |
| Model | GTF100 | SG100 |
| Capacity | 10 ton | 10 ton |
| Min Beam _Height | 17.4000 " | 8.3000 " |
| Min Curve_Radius | 118.1000 " | 96 " |
| Std Flange _Adjustment | 5.5 - 8.5 in | 4.9" - 12" |
| Type | Geared | Geared |
| Weight | 260 lbs | 165 lbs. |
Safety information
Safety Requirements
- Eye Protection
- Hard Hat
- Gloves
- Safety Shoes
