CAT CLASS: 0889025

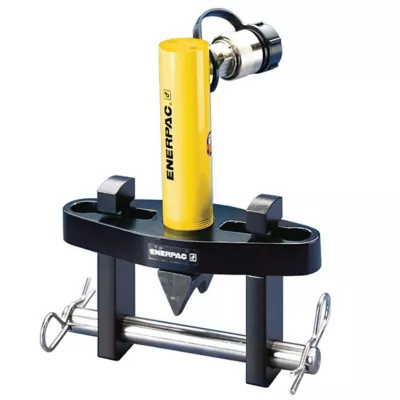

10 Ton Flange Spreader Fs109


Hydraulic flange spreaders are ideal for spreading pipe flanges in a wide range of industrial and construction applications. Features adjustable jaw widths using a steel pin that is placed through a stud hole in the flange for leverage. Includes a single-acting, spring return cylinder and a 0.13’’-1.13’’ standard wedge. Has a 10 ton capacity, weighing 40 lbs.


Products are subject to availability.

Make Gearwrench Enerpac
Model N2024 FS-109
Capacity 10 ton 10 ton
Jaw Width Range 9 1/8" 4.10 - 8.5"
Matching Hand Pump N.A. P-392
Max Flange Thickness N.A. 2" x 3.62"
Spread Range N.A. NA
Stud Size 1 1/4 1.25 - 1.63"
Weight 20 lbs 40 lbs

Safety information

Safety Requirements
  • Eye Protection
  • Gloves
