CAT CLASS:
0820400

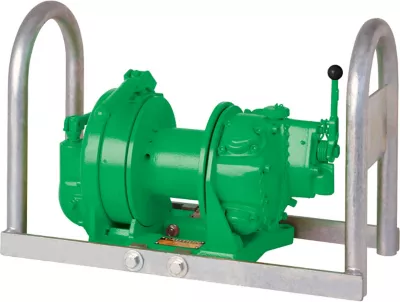

10,000lb Air Winch
Overview
Ideal for lifting, pulling, and tensioning, Air Winches offer an extremely durable and reliable solution. Made with galvanized steel cages, the compact design is easy to handle and gives you precise speed control. It features piston air motors for excelling spotting and positive starts, and the front design allows for horizontal pulling.
Specifications
Products are subject to availability.
| Make | Ingersoll-Rand | Michigan Pneumatic |
| Model | FA5A-LMX1HQ-S | MP-W5036 |
| Air Inlet | 1-1/4" | 2" |
| Air Requirement | 600 CFM @ 90 PSI | 318 CFM @ 90 PSI |
| Brake Type | Manual band | Automatic |
| Capacity | 10,000 lbs. | 11,000 Lbs |
| Drum Length | 27 " | 23.5200 " |
| HP | 25 | 16 |
| Weight | 1,176 lbs. | 1923 Lbs |
Safety information
Safety Requirements
- Eye Protection
- Hard Hat
- Gloves
- Safety Shoes
