CAT CLASS: 0520137

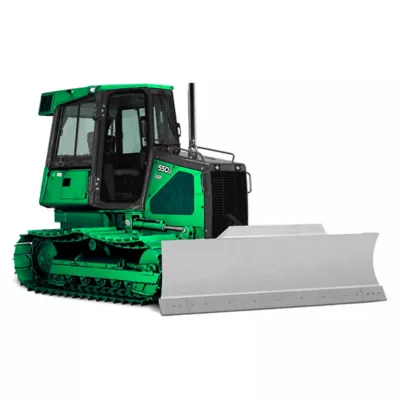

80-89 HP Crawler Dozer LGP

Overview

Crawler dozers feature power angle-tilt blades for outstanding performance and precision control in a variety of earthmoving applications. The blade can be angled left/right, tilted forward/back and raised/lowered with a single joystick control. Rugged powertrains with hydrostatic, or power-shift transmissions, provide smooth operation and excellent load capacity. This 85 HP low ground pressure bulldozer has a maximum blade width of 124”, a blade capacity maximum of 2.5 cubic yards, and a shoe width peak of 24”.

Specifications

Products are subject to availability.

Make John Deere
Model 550J LGP
Blade Capacity 2.5 cu. yd.
Blade Width 124 "
Drawbar Pull_(1st gear/1 PHM) 21000 lbs
Ground Pressure 4.2 PSI
HP 85
Shoe Width 24 "
Transport Dimensions 13' 3"L x 9' 7"W x 9'H
Weight 18252 lbs

Safety information

Safety Requirements
  • Hard Hat
  • Safety Shoes
