CAT CLASS: 0520137

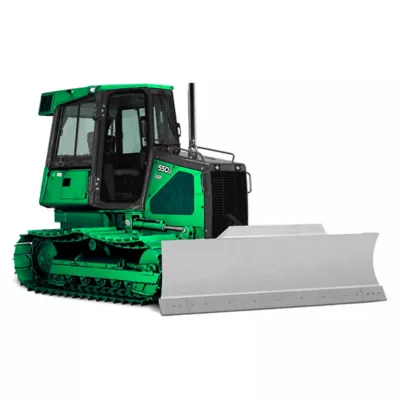

80-89 HP Crawler Dozer LGP

80-89 HP Crawler Dozer LGP
Key Specs
  • Maximum HP of 84
  • Blade width maximum of 124”
  • Maximum blade capacity of 2.6 yd³
Key Specs
  • Maximum HP of 84
  • Blade width maximum of 124”
  • Maximum blade capacity of 2.6 yd³

Key Features

  • Maximum HP of 84
  • Blade width maximum of 124”
  • Maximum blade capacity of 2.6 yd³
  • Shoe width peak of 28”
  • Ground pressure maximum of 4.5 PSI
  • Low ground pressure
Crawler dozers feature power angle-tilt blades for outstanding performance and precision control in a variety of earthmoving applications. The blade can be angled left/right, tilted forward/back and raised/lowered with a single joystick control. Rugged powertrains with hydrostatic, or power-shift transmissions, provide smooth operation and excellent load capacity. This 85 HP low ground pressure bulldozer has a maximum blade width of 124”, a blade capacity maximum of 2.5 cubic yards, and a shoe width peak of 24”.

Overview

Crawler dozers feature power angle-tilt blades for outstanding performance and precision control in a variety of earthmoving applications. The blade can be angled left/right, tilted forward/back and raised/lowered with a single joystick control. Rugged powertrains with hydrostatic, or power-shift transmissions, provide smooth operation and excellent load capacity. This 85 HP low ground pressure bulldozer has a maximum blade width of 124”, a blade capacity maximum of 2.5 cubic yards, and a shoe width peak of 24”.

Key Features

  • Maximum HP of 84
  • Blade width maximum of 124”
  • Maximum blade capacity of 2.6 yd³
  • Shoe width peak of 28”
  • Ground pressure maximum of 4.5 PSI
  • Low ground pressure

Products are subject to availability.

Specifications

Make John Deere
Model 550J LGP
Blade Capacity 2.5 cu. yd.
Blade Width 10.3333 '
Drawbar Pull_(1st gear/1 PHM) 21000 lbs
Ground Pressure 4.2 PSI
HP 85
Shoe Width 24 "
Transport Dimensions 13' 3"L x 9' 7"W x 9'H
Weight 18252 lbs

Specifications & documentation

Products are subject to availability.

Specifications

Make John Deere
Model 550J LGP
Blade Capacity 2.5 cu. yd.
Blade Width 10.3333 '
Drawbar Pull_(1st gear/1 PHM) 21000 lbs
Ground Pressure 4.2 PSI
HP 85
Shoe Width 24 "
Transport Dimensions 13' 3"L x 9' 7"W x 9'H
Weight 18252 lbs
  • Hard Hat
  • Safety Shoes

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
