CAT CLASS: 0530240

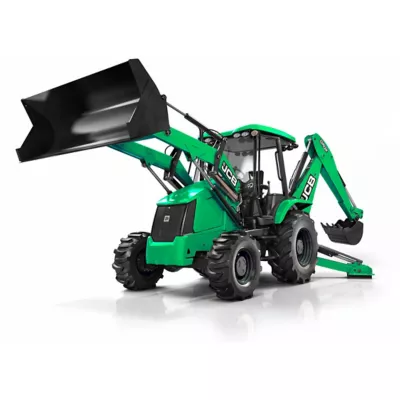

4WD Extendahoe Backhoe w/ Canopy
CAT CLASS: 0530240
4WD Extendahoe Backhoe w/ Canopy
Overview
Backhoe loaders provide outstanding versatility, performing a variety of digging, loading, and utility applications. This 4WD extendahoe backhoe model includes a canopy, 4-speed synchronized transmissions, and a 24” width standard backhoe bucket. The diesel powered backhoes maximum digging depth is 14’10”/18’ 3” and the maximum backhoe lift capacity is 4,067/2,723 lbs.
Specifications
Products are subject to availability.
| Make | Case | Case | JCB | JCB | John Deere | John Deere |
| Model | 580M 4WD Cab | 580M 4WD EX Canopy | 3C-14 4WD Extradig Canopy | 3CX-14 4WD Extradig Canopy | 310G 4WD Extended Canopy | 310KEP 4WD Extended Canopy |
| Backhoe Lift Capacity | 3,950 lbs. | 3,240/2,160 lbs. | 3,450/1,745 lbs. | 3,867/2,691 lbs. | 4,067/2,723 lbs. | 4,050/2,723 lbs. |
| HP | 79 | 79 | 74 | 74 | 70 | 70 |
| Loader Dump Height | 106 " | 107 " | 106 " | 108 " | 106 " | 106 " |
| Loader Lift Capacity | 6182 lbs | 6182 lbs | 6750 lbs | 7670 lbs | 5800 lbs | 6600 lbs |
| Max Digging _Depth | 14' 3" | 14' 10"/18' 3" | 14' 7"/18' | 14' 7"/18' 6" | 14' 5"/17' 11" | 14' 4"/17' 10" |
| Overall Dimensions | 23'L x 86"W x 11'3"H | 23'L x 86"W x 11'7"H | 23'L x 88"W x 11'2"H | 24'L x 92"W x 11'7"H | 23'L x 86"W x 11'3"H | 23'L x 86"W x 11'1"H |
| Weight | 14096 lbs | 14526 lbs | 14252 lbs | 16437 lbs | 15090 lbs | 14723 lbs |
Safety information
Safety Requirements
- Hard Hat
- Safety Shoes
