CAT CLASS:
0320520

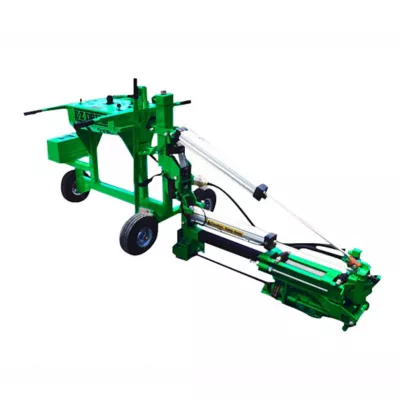

Dowel Drill Slab Rider 1 Drill Air
Overview
This slab rider provides great efficiency due to the two-gang drill system, this allows the unit to drill simultaneously every 12-36" of center. The drill is able to positioned both vertically and horizontally and has an air consumption of 200 CFM.
Specifications
Products are subject to availability.
| Make | E-Z Drill | E-Z Drill |
| Model | 210B SRA - Horizontal Position | 210B SRA - Vertical Position |
| Air Consumption | 100 CFM | 100 CFM |
| Chuck Size | 7/8" x 3 1/4" | N.A. |
| Drill Bit Diameter | 5/8" to 2 1/2" | 5/8" to 2 1/2" |
| Drill Depth | 18" | 18 |
| Drill Distance From Corner | 6" | N/A |
| Drill Distance From Ground | 3" | Up to 12" |
| Drill Distance From Wheel to Center of Bit | N/A | 21 1/2" |
| Drill Motor | CP 32A | CP 32A |
| Operating Pressure | 90 PSI | 90 PSI |
| Overall Dimensions | 94"L x 32"W x 32"H | 73"L x 54"W |
| Weight | 385 lbs | 1150 lbs |
Safety information
Safety Requirements
- Eye Protection
- Safety Shoes
- Gloves
