CAT CLASS:
1500095

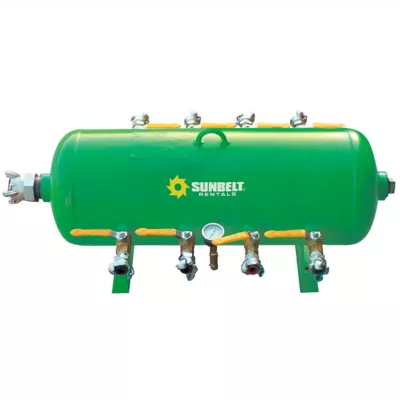

Air Manifold
Overview
An air manifold that allows for up to 8 pneumatic tools to be used at once. The multi-tap air manifold comes stock with a gauge so that the air pressure can be regulated. It also has a drain valve on the bottom of the tank. In addition, the manifold only requires a single hose to be connected to the air compressor to run all 8 outlets. Air manifolds can be used in any industry where there is a need to have multiple outlets of air to supply various pneumatic tools simultaneously.
Specifications
Products are subject to availability.
| Make | Texas Pneumatic |
| Model | TX-2AMF |
| Air Inlet | 2 " |
| Capacity | 15 gal. |
| Max Working Pressure (PSI) | 200 PSI |
| No. of Outlets (3⁄4") | 8 |
| Overall Dimensions | 39"L x 22"W x 18"H |
| Weight | 63 lbs |
Safety information
Safety Requirements
- Gloves
