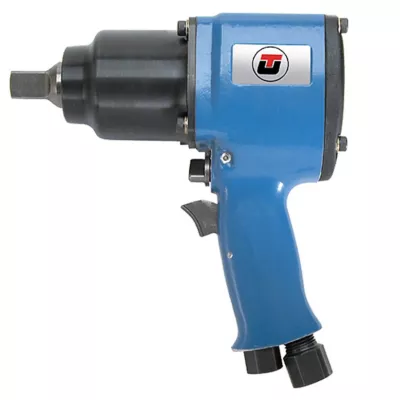

1" Air Impact Wrench - D Handle

Overview

Air impact wrenches provide high-speed bolt torquing in industrial and construction applications. Factors to consider when selecting an impact wrench for a specific application are the diameter of the bolts being tightened, the approximate torque requirement, and the intended use frequency. The 1” Air Impact – D Handle has a speed of 5,000 RPM with 800 impacts per minute. Additionally, impact sockets are also available for rent.

Specifications

Products are subject to availability.

Make	Ingersoll	Ingersoll	Universal Tool	Universal Tool
Model	1712B2	3940B2T1	UT1040C	UT7560C-1
Air Requirement	56 CFM @ 90 PSI	75 CFM @ 90 PSI	58 CFM @ 90 PSI	35 CFM @ 90 PSI
Drive/Style	1"square/straight	1"square/straight	1"square/straight	1"square/pistol
Impacts/Min	800	800	800	1050
Max Torque	1,350 ft. lbs.	2,500 ft. lbs.	2,000 ft. lbs.	1,025 lbs.
No-Load Speed	6,000 RPM	6,000 RPM	5,000 RPM	5,700 RPM
Weight	18 lbs	21 lbs	22 lbs	12 lbs

Safety information

Safety Requirements

Eye Protection
Safety Shoes

Gloves
