CAT CLASS: 0010155

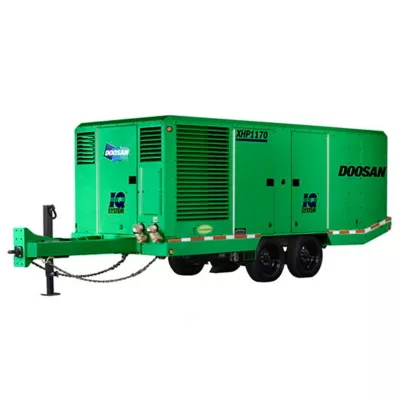

1,170 CFM 350 PSI Instrument Quality Diesel Air Compressor


Rated for continuous-duty operation, the IQ air compressor provides clean, reduced moisture with no condensate waste. Delivering heavy-duty dependability and automatic features, this 1,170 CFM 350 PSI diesel air compressor has an exclusive cool-box to help prolong component life, and a lockable valve system allows the unit to run in instrument-quality or standard rotary screw mode. The automatic shutdown protection and indicator lights for low engine oil pressure, high engine coolant temperature, and low fuel level are one of the many standard features included. The integral after cooler discharges air at only 20 degrees Fahrenheit above ambient. In addition, this compressor is complete with electric brakes with towing lights, side markers, and reflectors.


Products are subject to availability.

Make Doosan
Model XHP1170WCAT
CFM 1170
HP 540
Onboard Fuel Cap 230 gal.
Pressure Range 150-375 PSI
Rated Pressure 350 PSI
Weight 17850 lbs

Safety information

Safety Requirements
  • Eye Protection
  • Hearing Protection
  • Gloves
