CAT CLASS: 0580802

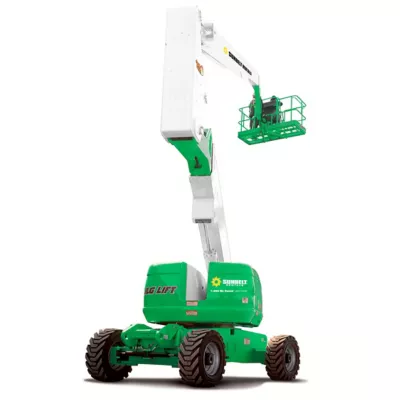

80' Articulating Manlift


Ideal for outdoor construction and industrial applications, the 80' articulating manlift will provide lifting versatility with a combination of up, out and over positioning capabilities. The 80' articulating boom lift features automatic traction control to help with navigating over uneven surfaces. The lift has a platform height of 80' and a maximum working height of 86'. It also boasts a horizontal outreach of 53', as well as, an up and over reach of 32'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures 96" x 36". Further, the platform capacity of 1,000 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.


Products are subject to availability.

Make JLG
Model 800A 4WD
Fuel Type Diesel or dual fuel
Gradeability 45%
Horizontal Reach 53 '
Overall Width 96"
Platform Height 80 '
Platform Size 96" x 36"
Restricted Platform Capacity 1000 lbs
Stowed Height 118"
Unrestricted Platform Capacity 500 lbs
Up & Over Height 32.0800 '
Weight 34300 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
