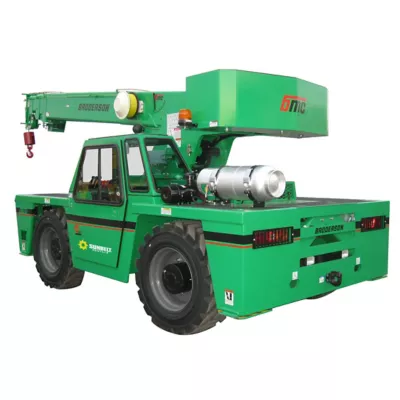

8.5 Ton Carry Deck Crane Gas / Propane

Overview

This 8-ton gas/propane carry deck crane is compact with a low-profile design that clears overhead obstructions and maneuvers in tight spaces. It's 4-wheel steering option allows for a very tight turning radius for quick positioning in constrained spaces. Further, this pick and carry deck crane has a large, self-loading cargo deck ideal for transporting heavy objects on the job. The maximum carry capacity is 11,500 lbs and the horizontal reach is 38’/55’. This unit is adaptable for a wide variety of applications including industrial and manufacturing plants, equipment maintenance & repair, industrial & mechanical contractors, as well as general construction. Altogether, the carry deck crane is an ideal machine for your heavy lifting in constrained environments.

Specifications

Products are subject to availability.

Make	Broderson	Shuttlelift	Shuttlelift
Model	IC-80-3F DF	3339 DF	3340 DF
Capacity (Deck)	14,000 lbs.*	14,000 lbs.*	14,000 lbs.*
Capacity (Outriggers)	18,000 lbs.*	18,000 lbs.*	18,000 lbs.*
Capacity (Pick/Carry)	11,400 lbs.*	11,500 lbs.*	11,500 lbs.*
Horizontal Reach	30'/40'**	31'/48'**	31'/48'**
Overall Ht/Width	87"/78"	87"/77"	87"/79"
Power Source	66 HP Dual Fuel	70 HP Dual Fuel	70 HP Dual Fuel
Sheave Height	37'/47'**	38'/55'**	38'/55'**
Weight	15800 lbs	15800 lbs	16600 lbs

Safety information

Safety Requirements

Hard Hat

Safety Shoes
