CAT CLASS: 0580839

69' Atrium Manlift

Overview

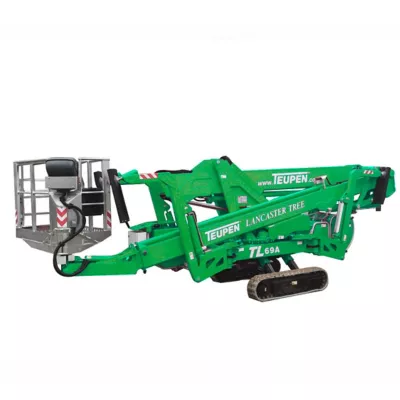

This atrium lift provides outstanding reach in areas with limited or narrow access and is equipped two independently operable telescopic booms. Additionally, it features outriggers for stabilization purposes and can be setup on slopes with up to a 30% grade. The compact man lift is also equipped with smooth, proportional electro-hydraulic controls. It has a platform height of 69' and a working height of 75'. The platform measures up to 52" x 28" with a platform capacity of 440 lbs. The spider lift can be used on sensitive flooring as it has a light, low surface load and it's compact design allows it to travel through a standard double door. This unit has dual power for operating indoor and outdoor. Altogether, atrium lifts are a safer and more efficient alternative to working with traditional scaffolding.

Specifications

Products are subject to availability.

Make ReachMaster Teupen
Model BL72 TL69A
Gradeability 28% 30%
Horizontal Reach 37 ' 37 '
Platform Capacity 440 lbs 440 lbs
Platform Height 66 ' 69 '
Platform Size 52" x 28" 48" x 27"
Power Source 15 HP Gas 110V/14 HP diesel
Transport Dimensions 17'L x 37"W x 78"H 20'L x 39"W x 78"H
Weight 6600 lbs 6967 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
