CAT CLASS:
0580626

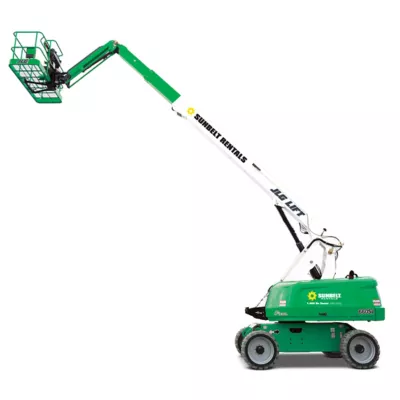

65' Straight Manlift w/ Jib
Overview
The 65' straight manlift is ideal for performing heavy lifting tasks in sensitive surface conditions. The boom lift has a platform height of up to 65' depending on the model and a maximum working height of 71', as well as, a horizontal outreach of over 50'. Additionally, this 65' manlift also has a jib with 130° range of articulation. The platform measures 96" x 36" providing ample working space. Further, the restricted platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. In addition, the lift also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.
Specifications
Products are subject to availability.
| Make | Genie | JLG | Skyjack | Skyjack |
| Model | S-65 D 4WD | 660SJ | SJ61T | SJ66T |
| Fuel Type | Diesel | Diesel | Diesel | Diesel |
| Gradeability | 45% | 45% | 50% | 50% |
| Horizontal Reach | 56.1667 ' | 57.0800 ' | 51.2500 ' | 57 ' |
| Platform Capacity | 500 lbs | 550 lbs | 500 lbs | 500 lbs |
| Platform Height | 65 ' | 65 ' | 61 ' | 66 ' |
| Platform Size | 96" x 36" | 96" x 36" | 96" x 36" | 96" x 36" |
| Transport Width | 98 " | 98 " | 96 " | 96 " |
| Weight | 24720 lbs | 25341 lbs | 23400 lbs | 26700 lbs |
Safety information
Safety Requirements
- Safety Harness
- Wallet (Training Card)
