CAT CLASS: 0070044

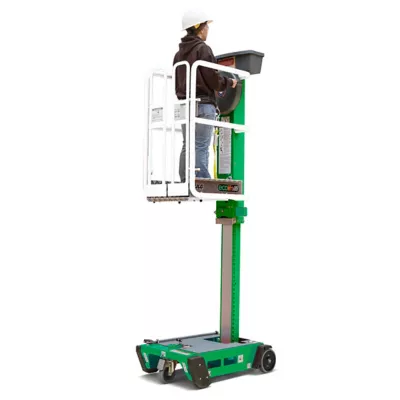

5' Lightweight Vertical Manlift Non-Power


The 5' lightweight vertical manlift is a non power lift that aids a single worker to access heights at low levels. This unit is an efficient alternative to using a standard ladder. EcoLifts are power-free and have no hydraulic oil or batteries, making them environmentally friendly options. Its sturdy base and automatic locking wheels let you work confidently with both hands. The lightweight lift has a platform height of 5' with maximum working height of 11'. The platform measures 28" x 24". The platform capacity of 330 lbs allows for one worker along with tools and supplies for optimal performance. Additionally, the vertical lift's compact design allows it to easily fit through standard doorway and its lightweight of 397 lbs makes it convenient to transport.


Products are subject to availability.

Make JLG
Horizontal Reach 10.9200 '
Overall Dimensions 39"L x 28"W
Platform Capacity 330 lbs
Platform Height 5 '
Platform Size 28" x 24"
Stowed Height 61"
Weight 397 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
