CAT CLASS: 0580455

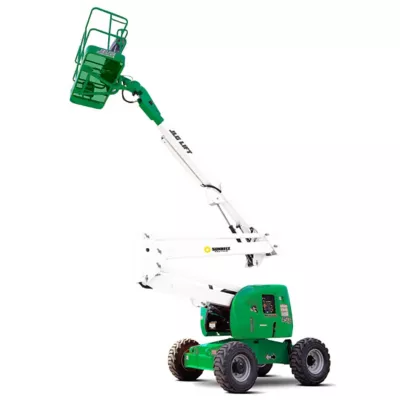

45' Articulating Manlift


Ideal for outdoor construction and industrial applications, the 45' articulating manlift will provide lifting versatility with a combination of up, out and over positioning capabilities. The 45' articulating boom lift features automatic traction control to help with navigating over uneven surfaces. The lift has a platform height of 45' and a maximum working height of 51'. In addition, it also boasts a horizontal outreach of 25' with an up and over reach of nearly 24'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures 72" x 30". Further, the platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.


Products are subject to availability.

Make Genie JLG
Model Z-45/25RT 4WD 450A 4WD
Gradeability 45% 45%
Horizontal Reach 25 ' 24.5000 '
Overall Width 90" 78"
Platform Capacity 500 lbs 500 lbs
Platform Height 45 ' 45 '
Platform Size 72" x 30" 72" x 30"
Stowed Height 81" 89"
Up & Over Height 23.5000 ' 25.1700 '
Weight 13790 lbs 14500 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
