CAT CLASS: 0580457

45' Articulating Manlift w/ Jib

Overview

Ideal for outdoor construction and industrial applications that require extensive reach, the 45' articulating manlift will provide lifting versatility with a combination of up, out and over positioning capabilities. The 45' articulating boom lift features automatic traction control to help with navigating over uneven surfaces. The lift has a platform height of 45' and a maximum working height of 51', as well as, a jib that allows for a 144° range of rotation. Additionally, it also boasts a horizontal outreach of up to 25' with an up and over reach of 24'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures 72" x 30". Further, the platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. The lift is 4-wheel drive operational and has a gradeability rating of 45%. Lastly, it is important to wear a safety harness while operating aerial lifts.

Specifications

Products are subject to availability.

Make Genie JLG Skyjack
Model Z-45/25JRT 4WD 450AJ 4WD SJ46AJ
Gradeability 45% 45% 45%
Horizontal Reach 25.0800 ' 24.5000 ' 24.7500 '
Overall Width 90" 92.5 90"
Platform Capacity 500 lbs 500 lbs 500 lbs

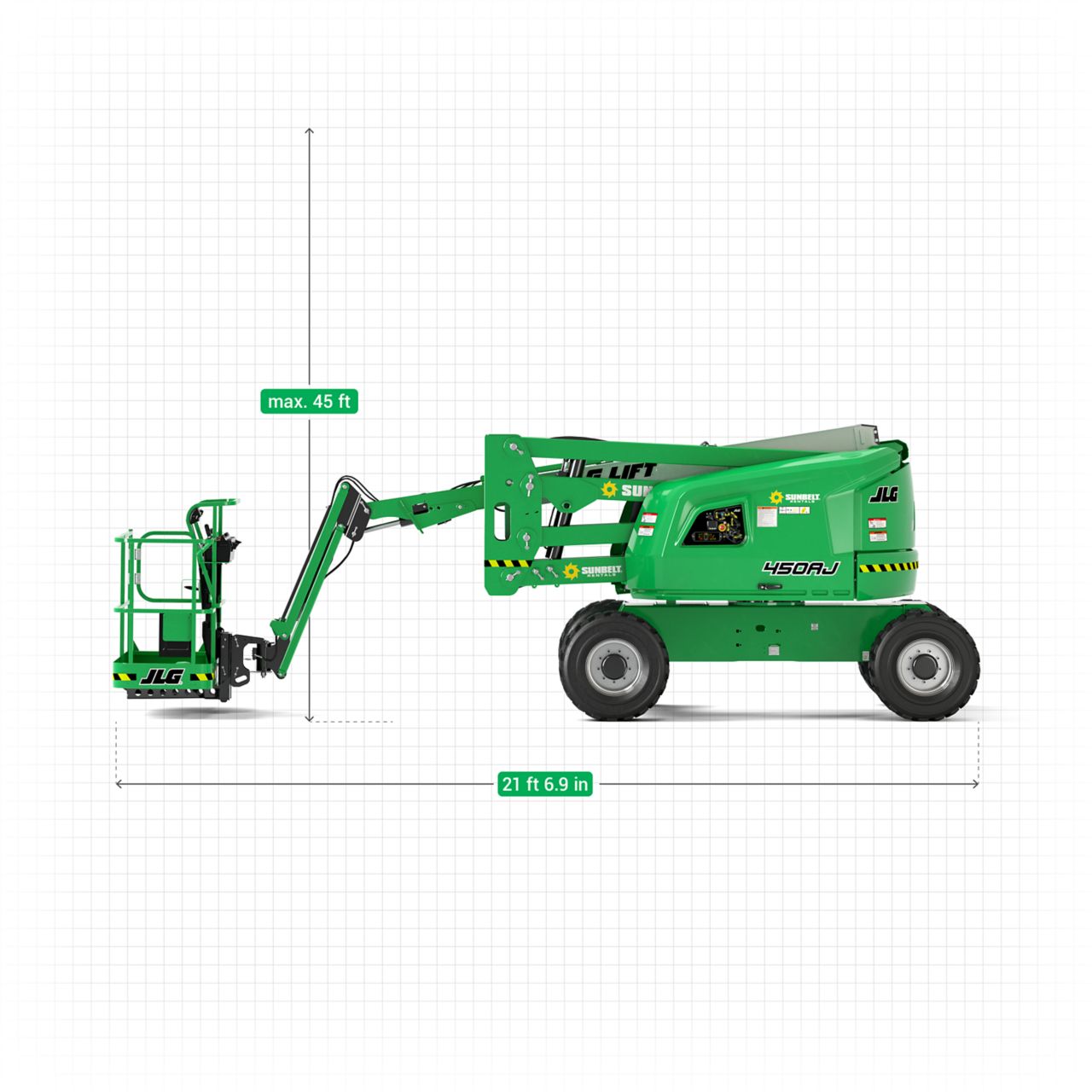

Platform Height 45 ' 45 ' 46 '
Platform Size 72" x 30" 72" x 30" 72" x 30"

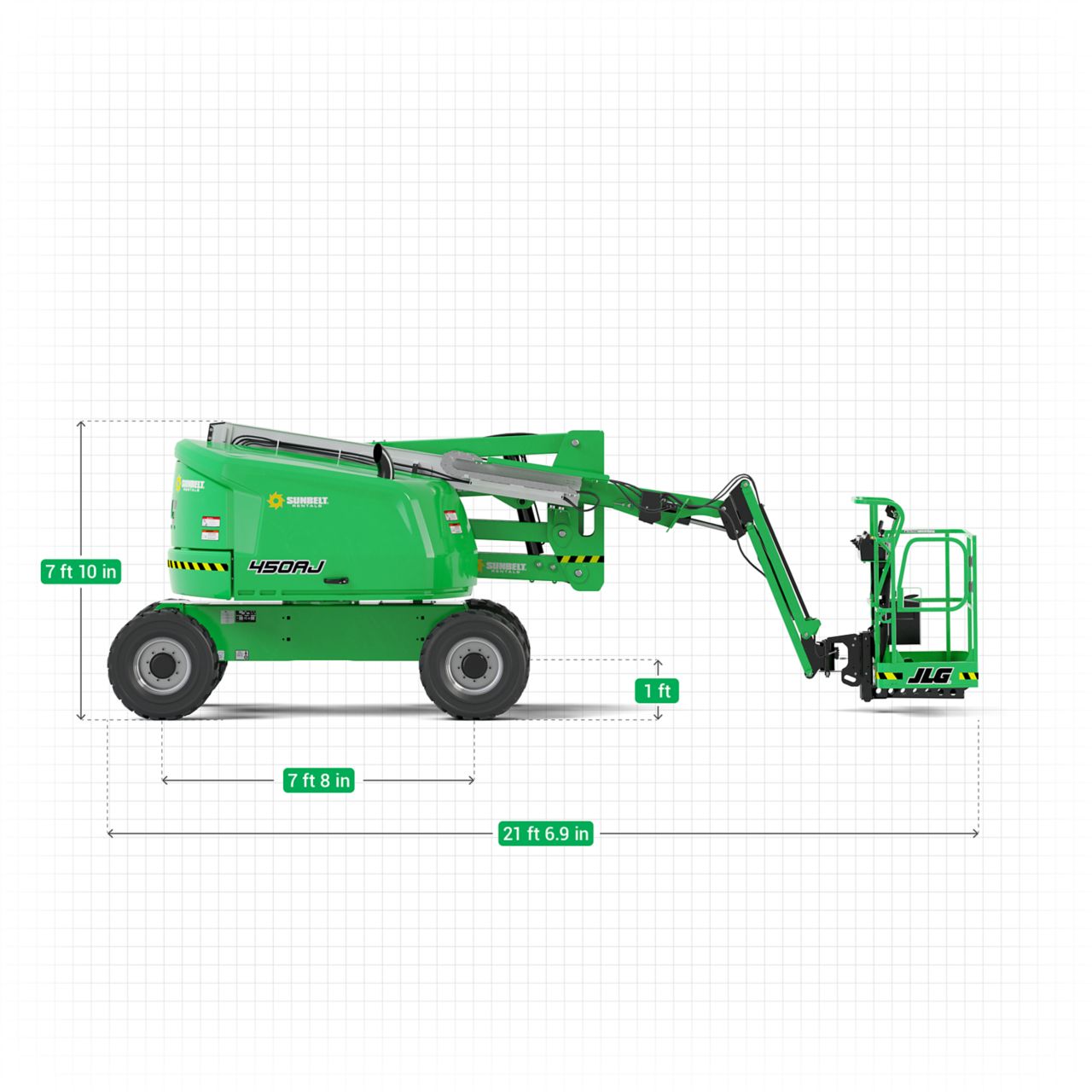

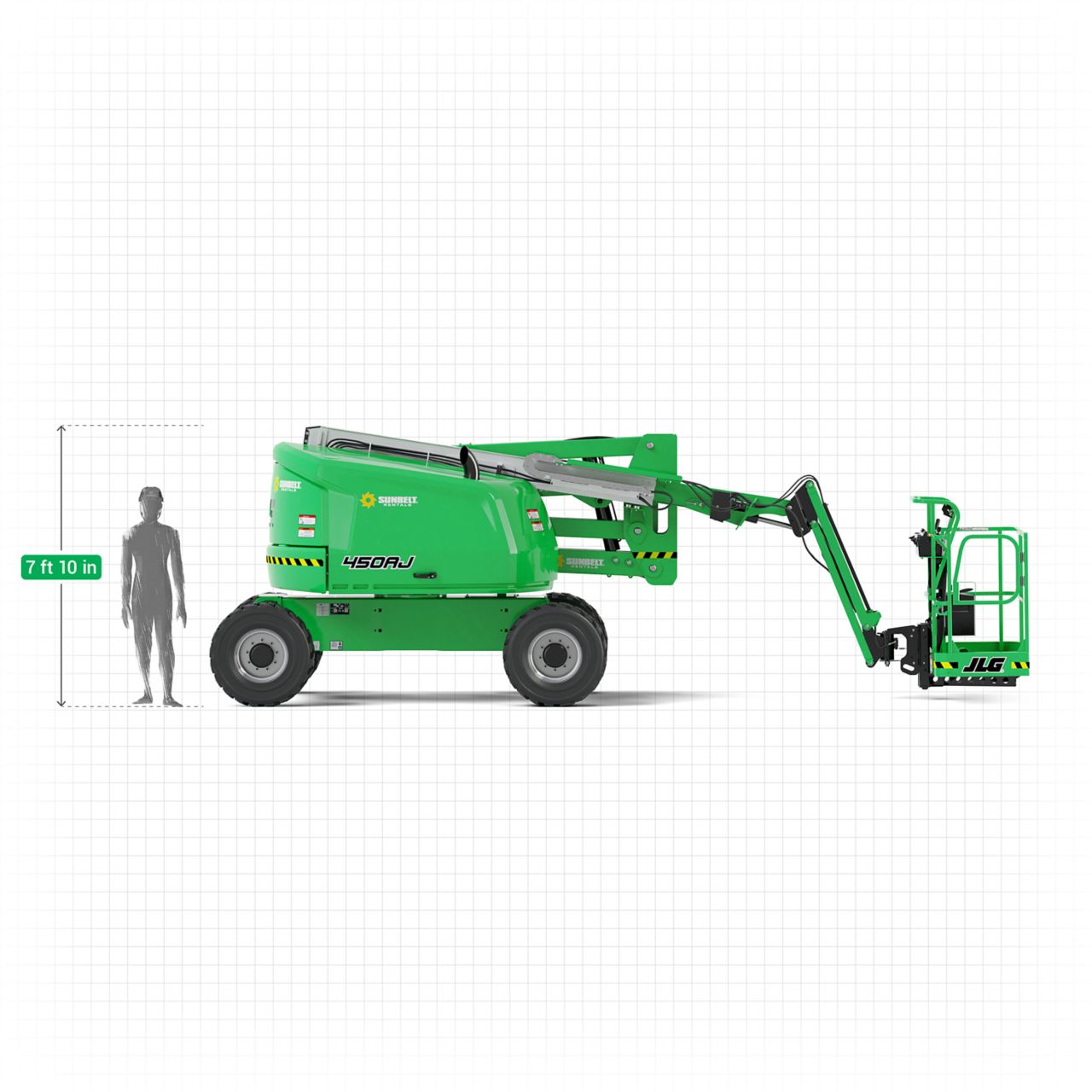

Stowed Height 81" 89" 82"
Up & Over Height 24.1700 ' 25.1700 ' 24.4200 '
Weight 14550 lbs 14150 lbs 13300 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
