CAT CLASS: 0580343

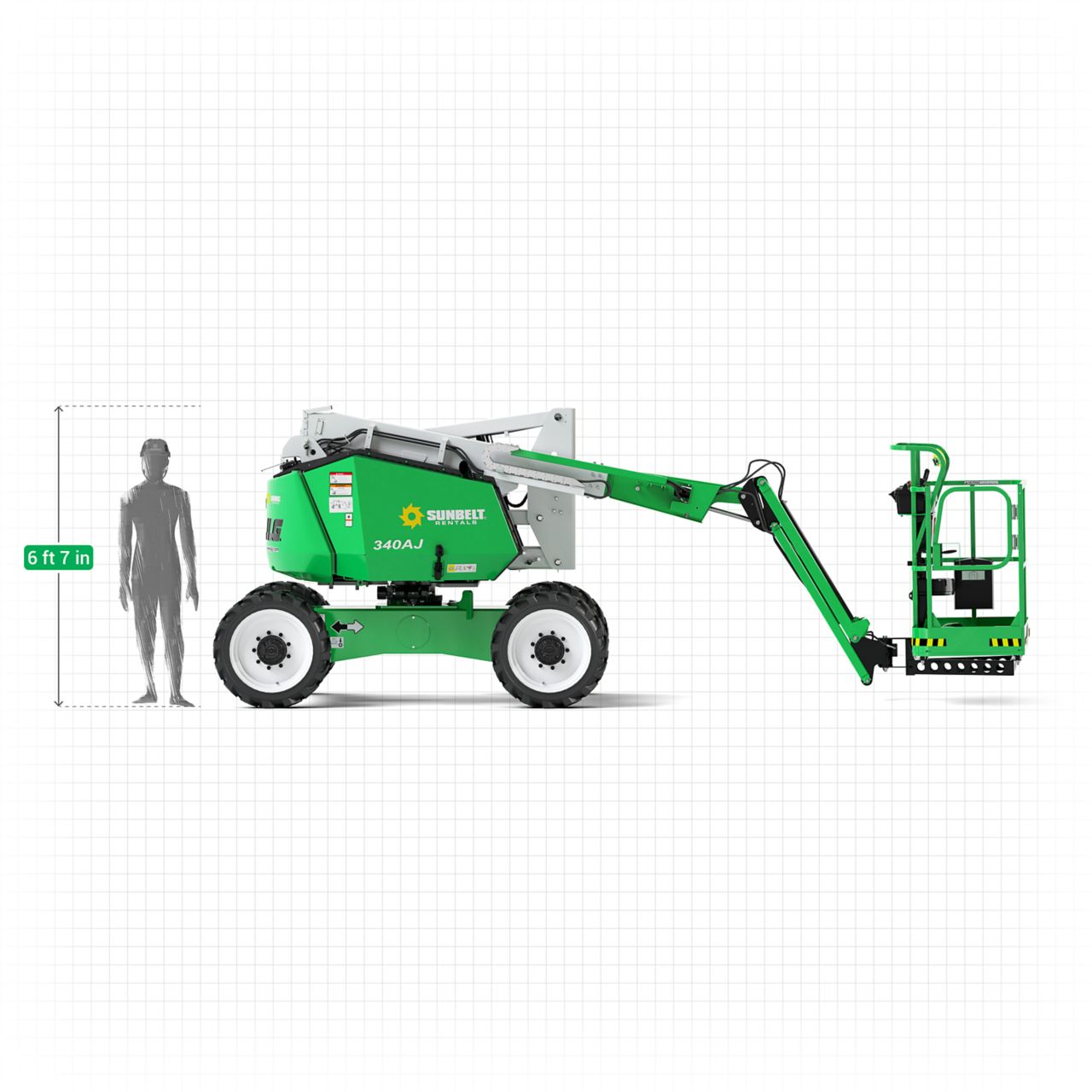

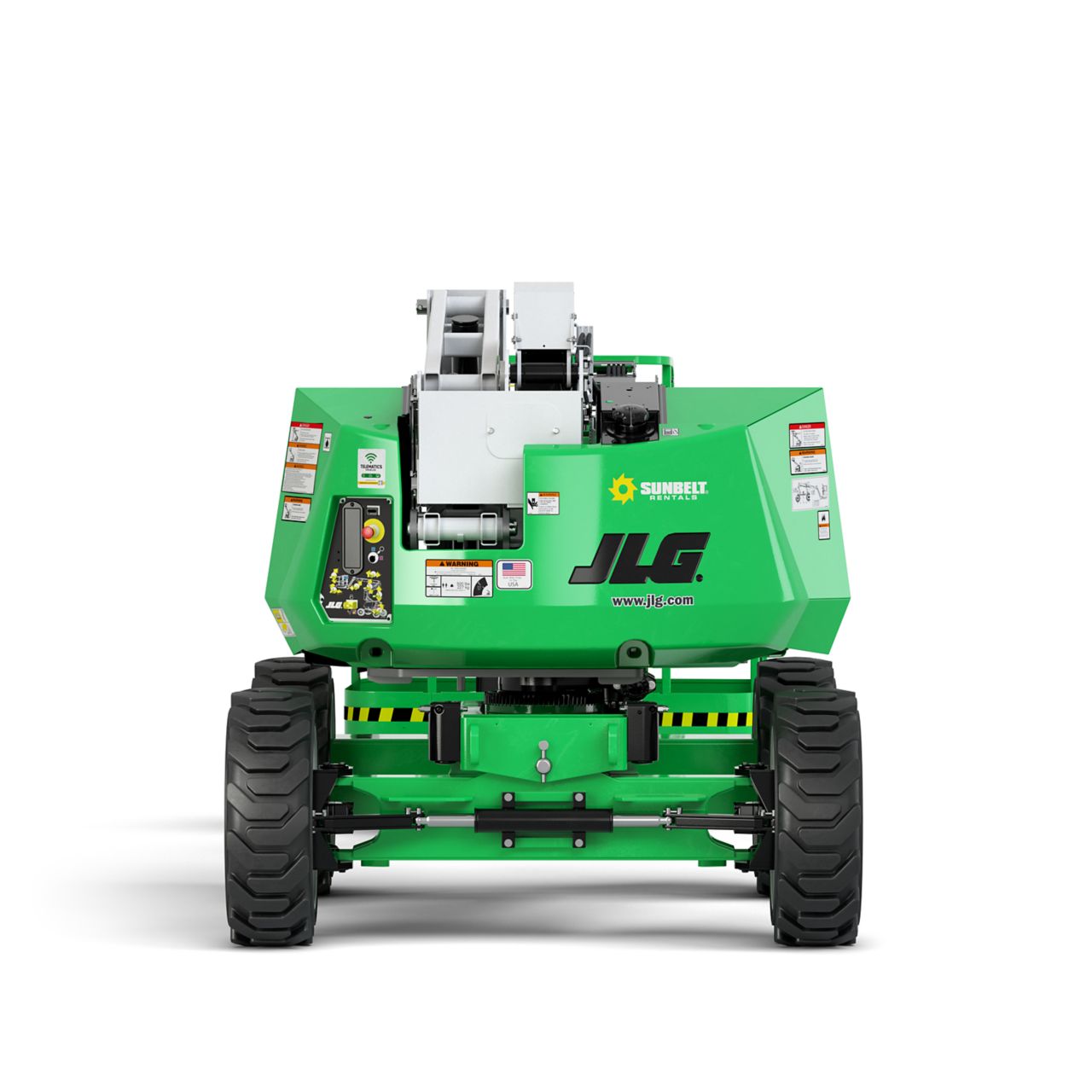

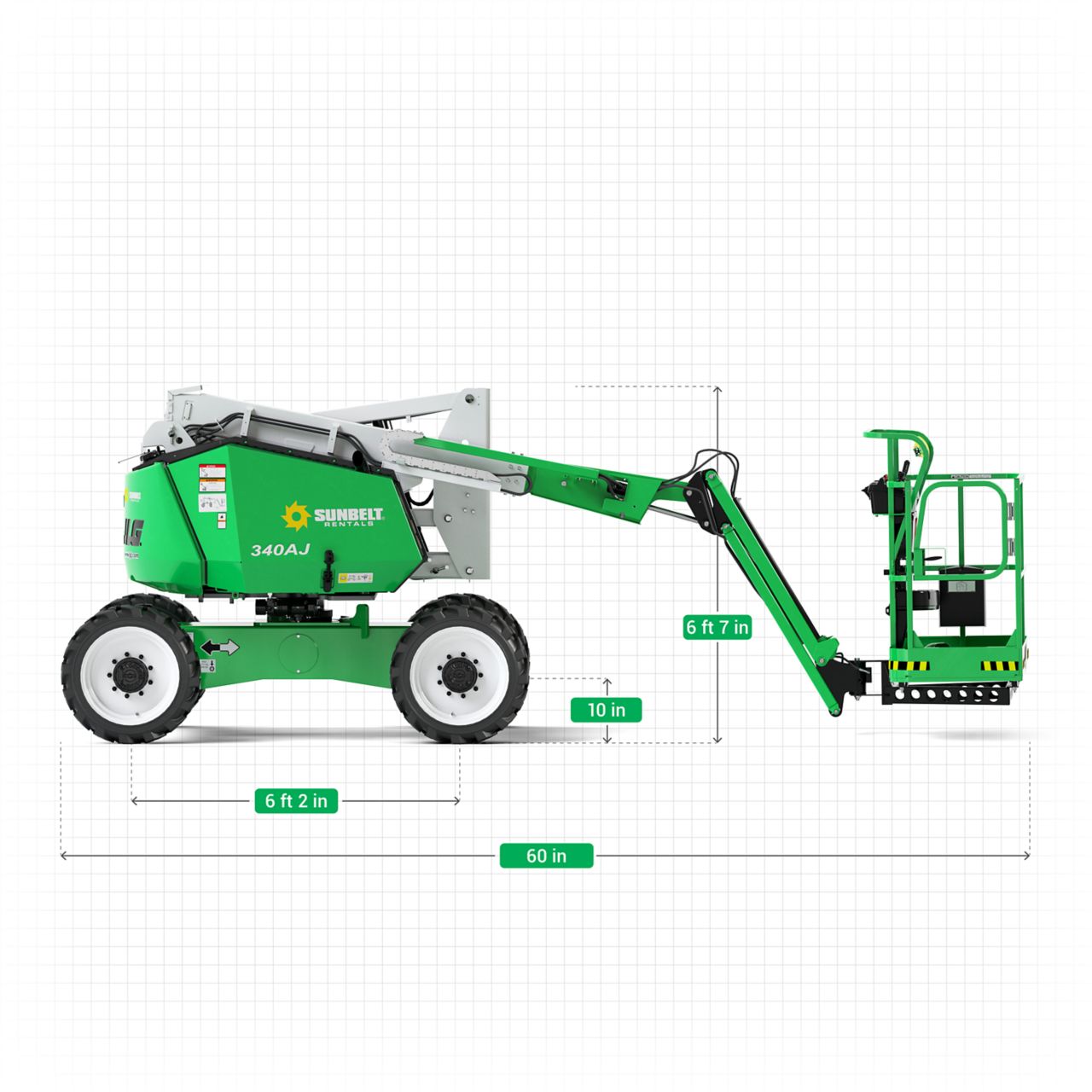

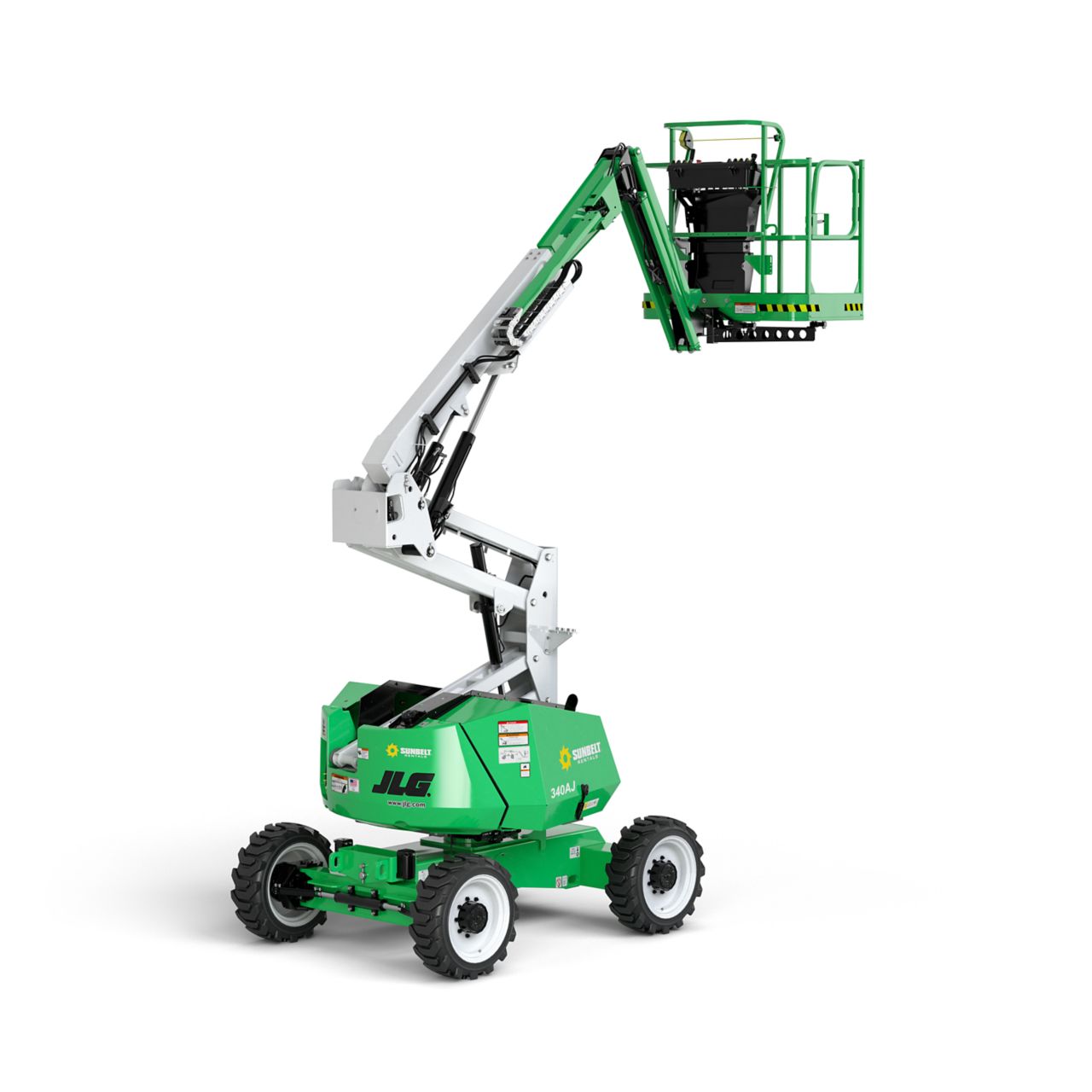

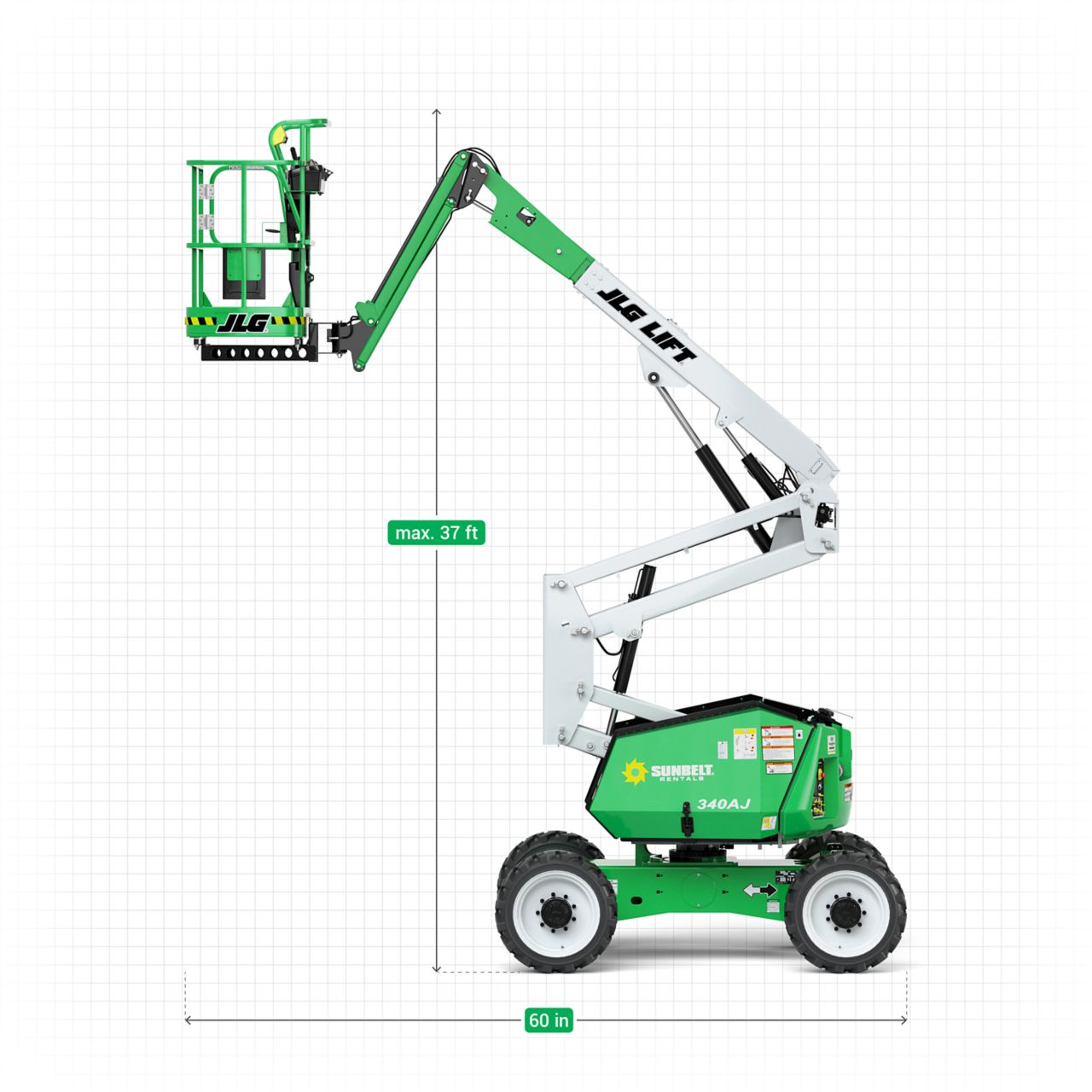

34' Articulating Manlift

Overview

Ideal for outdoor construction and industrial applications, the 34' articulating manlift will provide lifting versatility with a combination of up, out, and over positioning capabilities. In addition, the 34' articulating boom lift features automatic traction control to help with navigating over uneven surfaces. The lift has a platform height of 34' and a maximum working height of 40', as well as, a jib that has 144° of rotation. It also boasts a horizontal outreach of 20' with an up and over reach of 15'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures up to 60" x 30" depending on the model. Further, the platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.

Specifications

Products are subject to availability.

Make Genie JLG
Model Z-34/22IC 4WD 340AJ 4WD
Gradeability 45% 45%
Horizontal Reach 22.2500 ' 19.9200 '
Overall Width 73" 76"
Platform Capacity 500 lbs 500 lbs
Platform Height 34 ' 34 '
Platform Size 56" x 30" 60" x 30"
Stowed Height 79" 79"
Up & Over Height 15.0800 ' 17 '
Weight 10450 lbs 9700 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
