CAT CLASS:
0070003

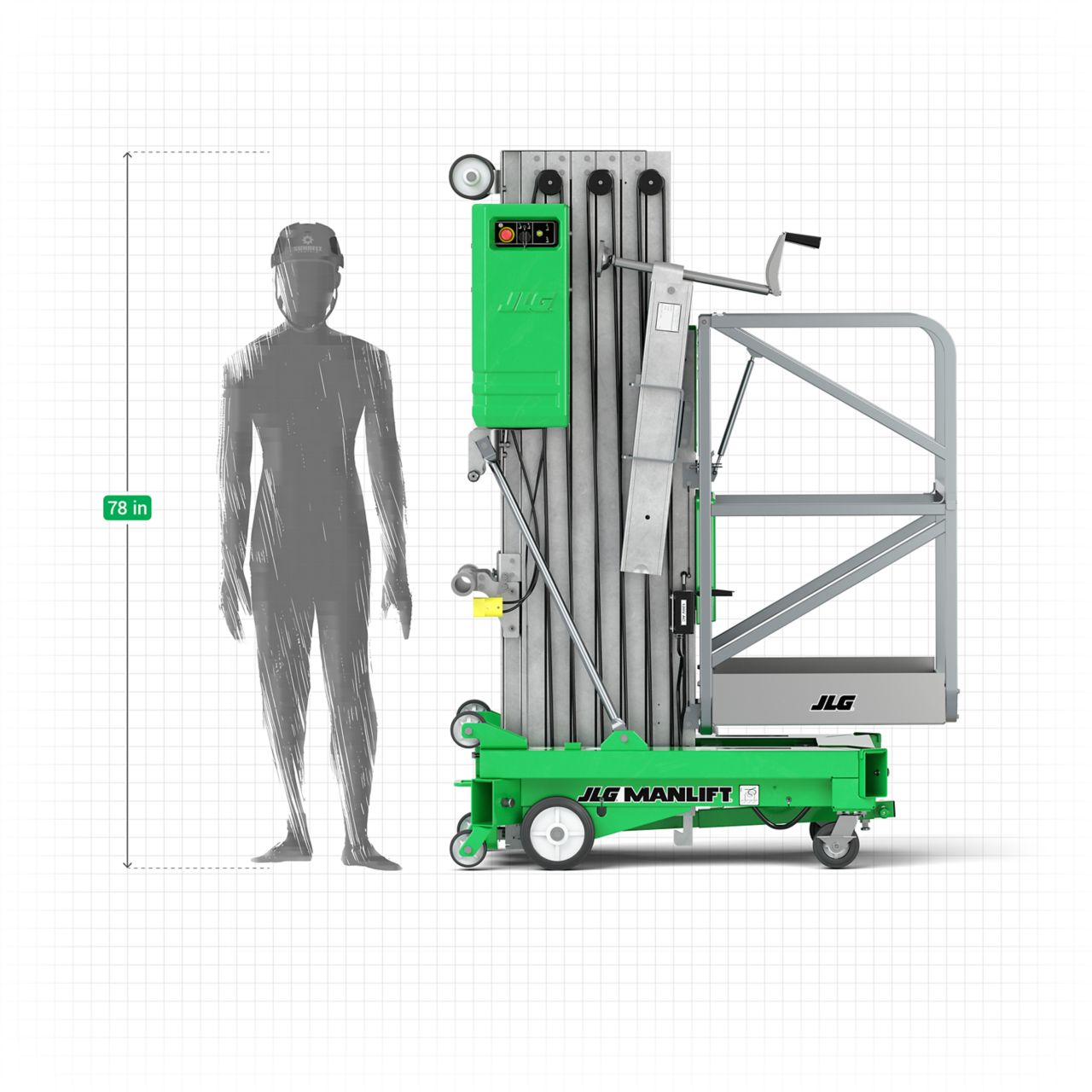

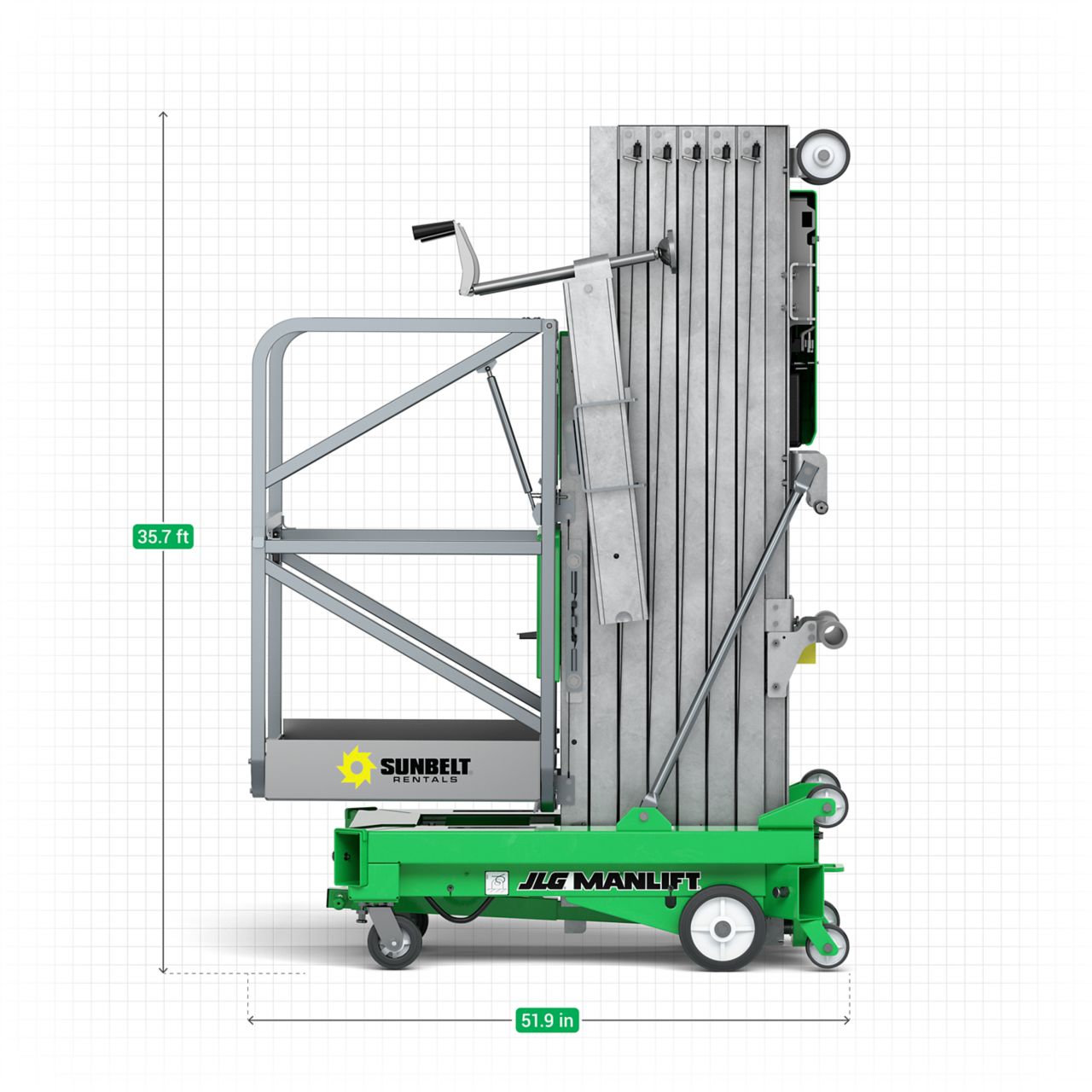

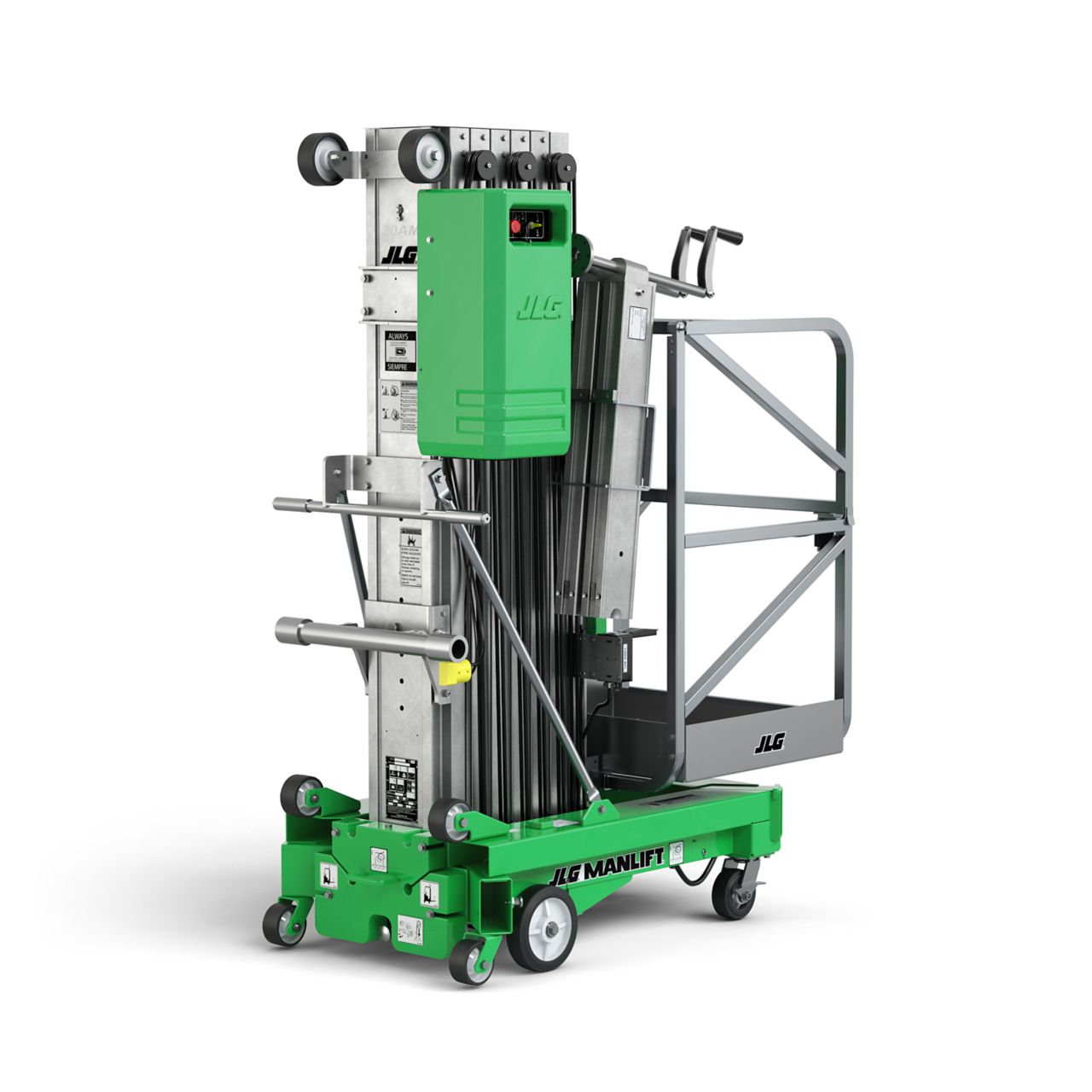

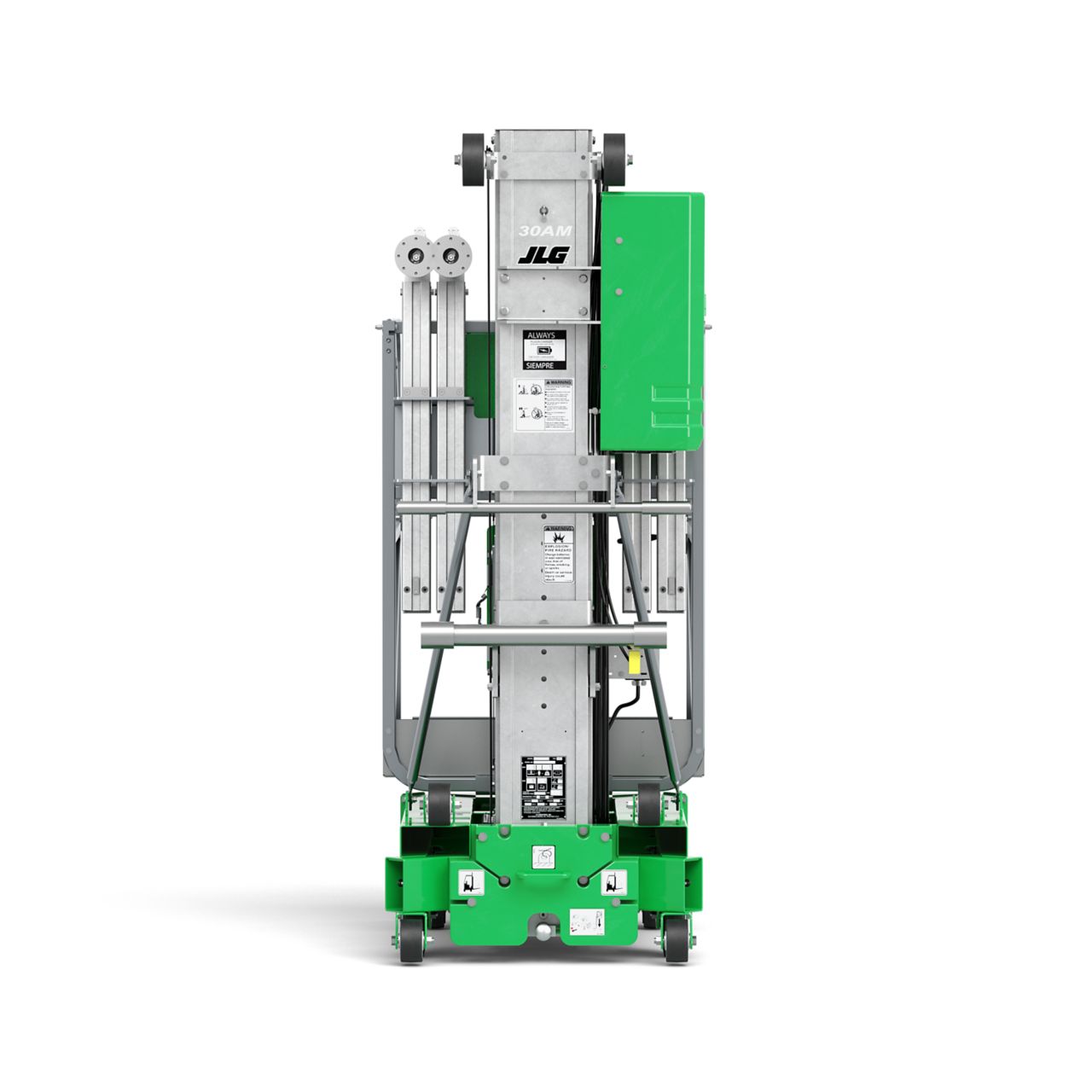

30' Push Around Single Manlift
Overview
The 30' Single Man Lift IWP is designed to effortlessly move around the job site and to vertically gain access to those tight workspaces. This 30' lift is built for reliability and strength, but is also easy to set-up and simple to operate. The lift has a platform height of 30' and a maximum working height of 36’. The platform measures up to 27" x 26". Further, the platform capacity is up to 350 lbs depending on the model, allowing for a single operator with tools and supplies. The machine weighs approximately 1,110 lbs making for convenient transport. This single man lift easily fits through a standard doorway. Additionally, these lifts also feature a standard 110V AC receptacle in the platform for an accessible power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.
Specifications
Products are subject to availability.
| Make | Genie | JLG |
| Model | AWP-30 | 30AM |
| Overall Dimensions | 53"L x 29"W | 52"L x 29"W |
| Platform Capacity | 350 lbs | 300 lbs |
| Platform Height | 30 ' | 30 ' |
| Platform Size | 27" x 26" | 26" x 26" |
| Power Source | Push | Push |
| Stowed Height | 78" | 78" |
| Weight | 867 lbs | 940 lbs |
Safety information
Safety Requirements
- Safety Harness
- Wallet (Training Card)
