CAT CLASS:
0070028

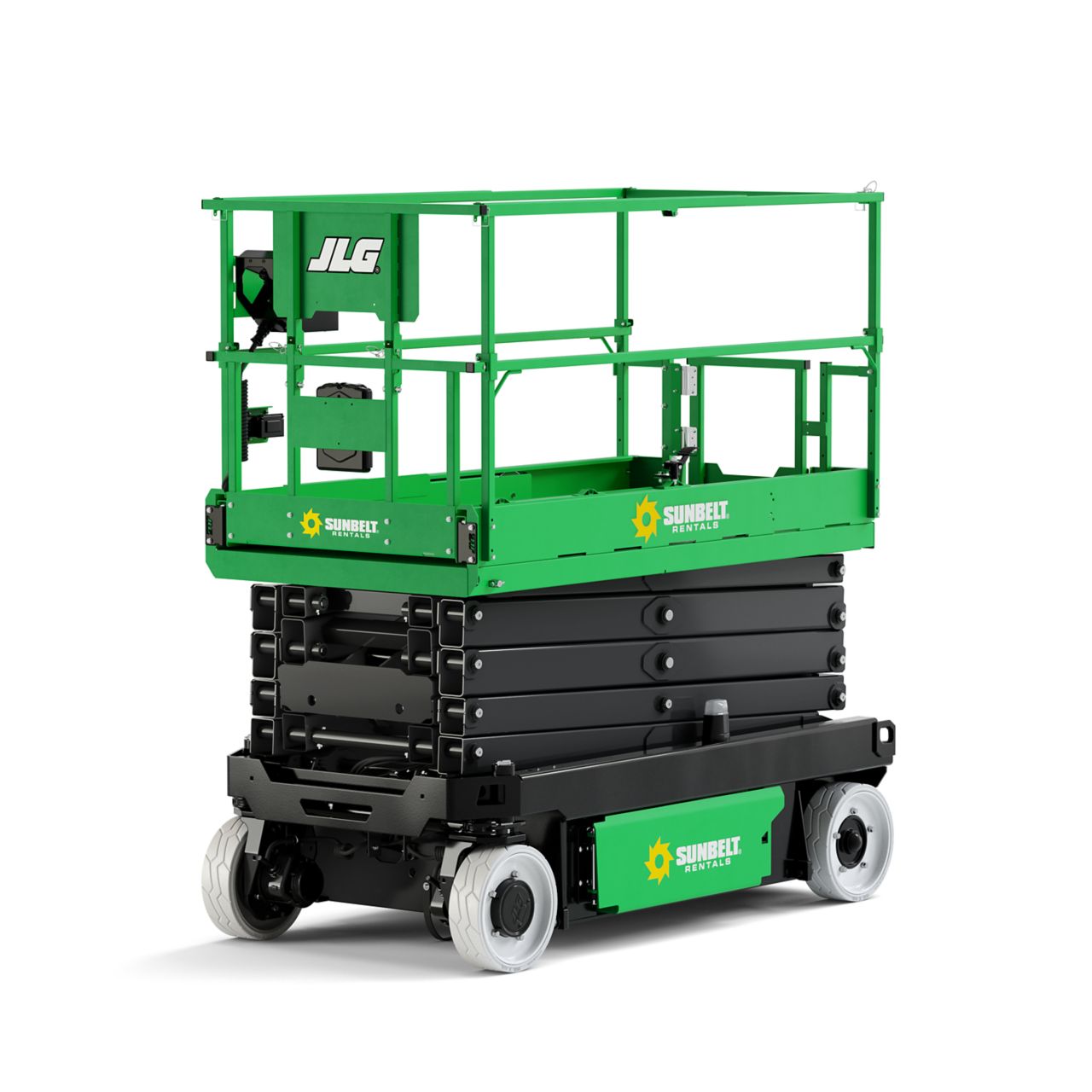

30'-33' Electric Scissor Lift
Overview
With a pothole protection system, these electric scissor lifts are ideal for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces. They are equipped with variable speed, rear two-wheel hydraulic drive. The scissor has a platform height up to 33’ and a maximum working height of 39'. The platform measures up to 98” x 44” with an extension deck of 50" for extra work area. Further, the platform capacity of up to 700 lbs allows for two workers at a time for optimal efficiency on the job. The slab lift features non-marking tires for work on delicate flooring. Additionally, this electric powered scissor lift is drivable at full height and should be used on flat and stable surfaces. A weight of only 4,975 lbs makes this lift convenient to transport. Lastly, it is important to wear a safety harness while operating aerial lifts.
Specifications
Products are subject to availability.
| Make | Genie | JLG | JLG | Skyjack |
| Model | GS-3246 | 3246ES | 3246ES | SJIII 4632 |
| Overall Dimensions | 96"L x 46"W | 99"L x 46"W | 99"L x 46"W | 91"L x 46"W |
| Platform Capacity | 700 lbs | 700 lbs | 705 lbs | 700 lbs |
| Platform Extension | 39 " | 50 " | 36 " | 48 " |
| Platform Height | 32 ' | 32 ' | 32 ' | 32 ' |
| Platform Size | 89" x 46" | 99" x 44" | 84" x 42" | 84" x 42" |
| Power Source | 24V DC | 24V DC | 24V DC | 24V DC |
| Retracted Height | 95 " | 78 " | 96 " | 74 " |
| Weight | 6172 lbs | 4975 lbs | 5620 lbs | 5075 lbs |
Safety information
Safety Requirements
- Safety Harness
- Wallet (Training Card)
