CAT CLASS:
0070025

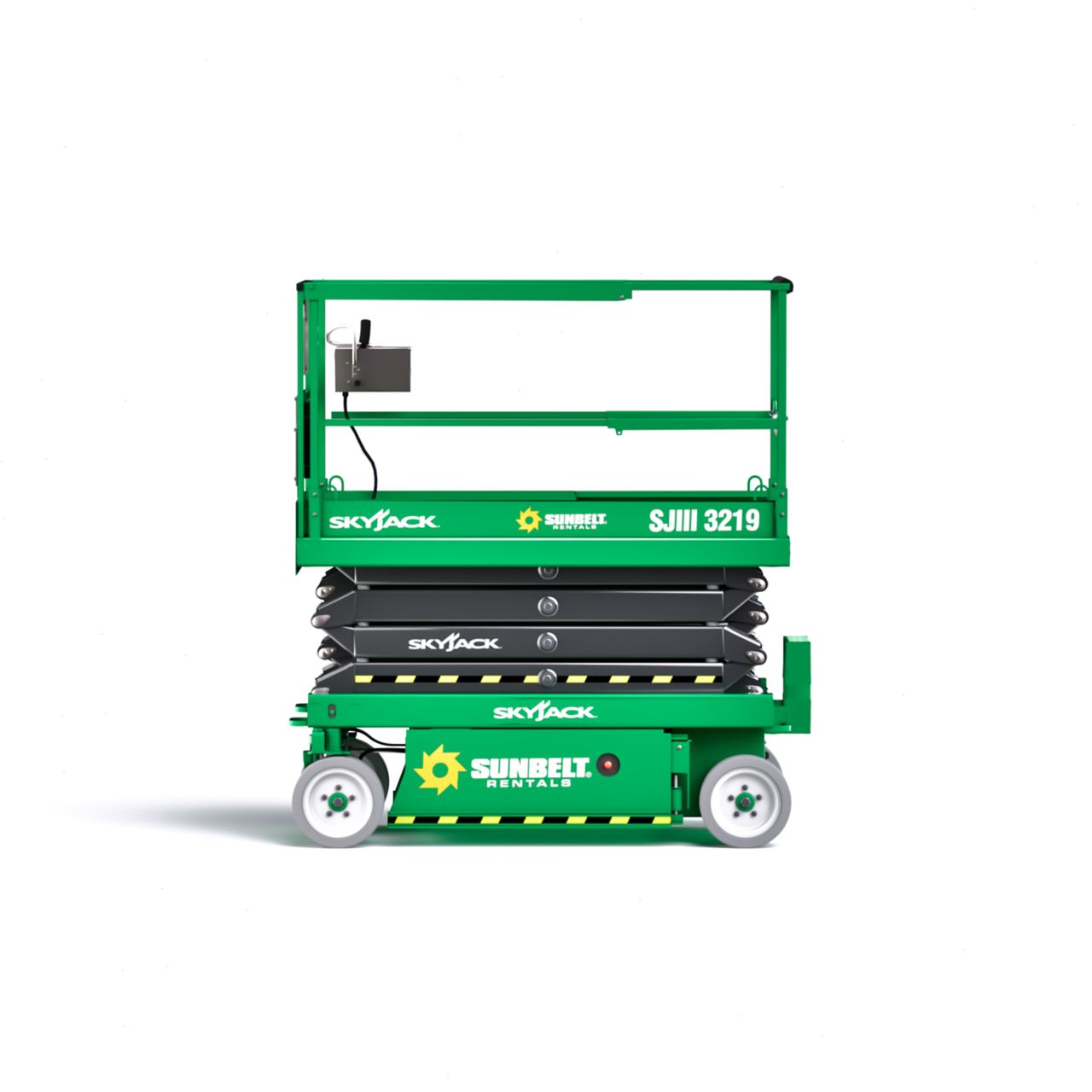

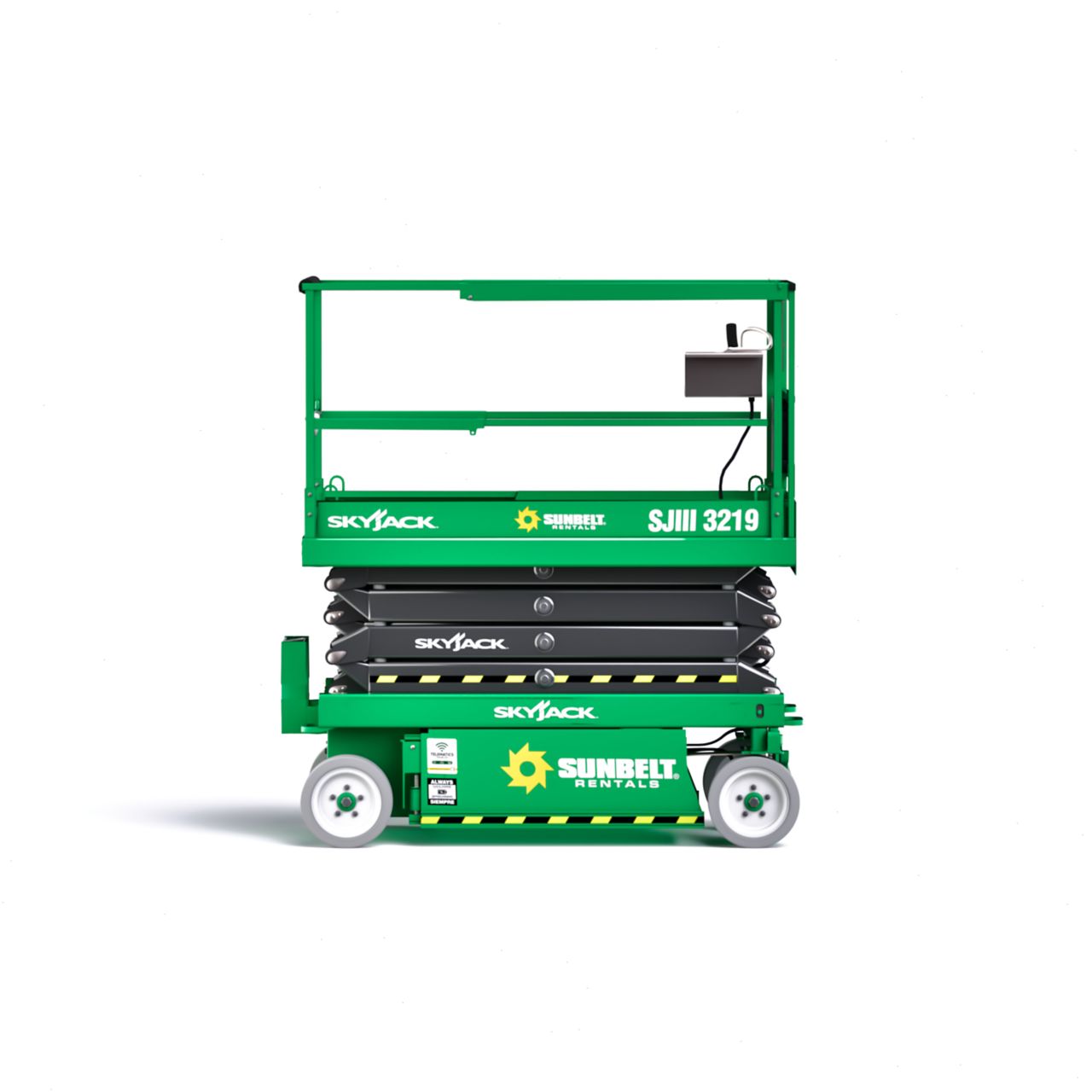

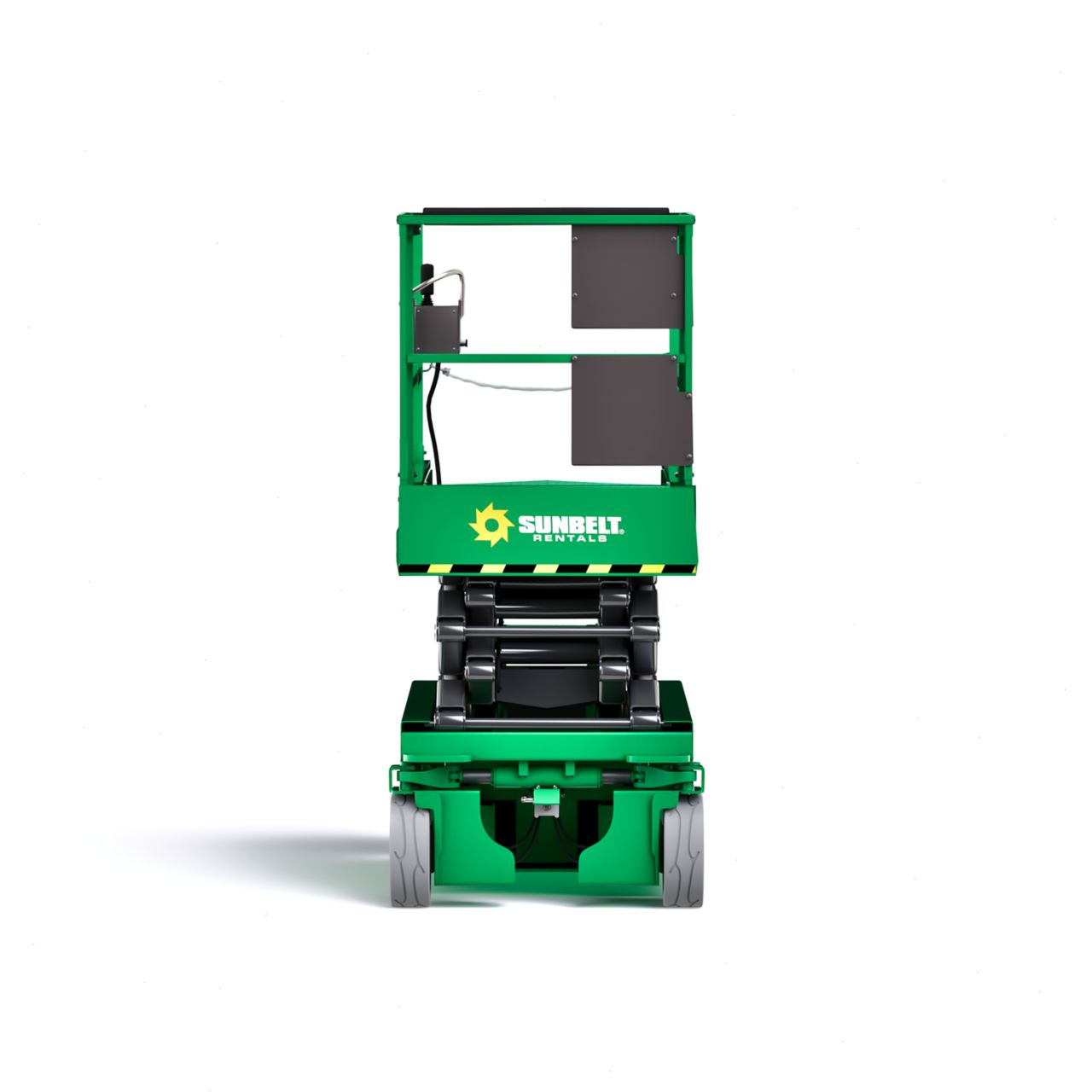

19' Electric Scissor Lift
Overview
This light weight electric scissor lift is perfect for a job that requires less reach and height, but demands more workspace and lift capacity. The scissor has a platform height of 19’ and a maximum working height of 25'. The platform measures up to 64” x 29” with an extension deck of 36" for extra work area. Further, the platform capacity of up to 500 lbs allows for two workers at a time for optimal efficiency on the job. This dual front wheel drive unit is narrow enough to fit through a single doorway. Additionally, the slab lift features non-marking tires for work on delicate flooring. This electric powered scissor lift is drivable at full height and should be used on flat and stable surfaces. A weight of approximately 2,710 lbs makes this lift convenient to transport. Lastly, it is important to wear a safety harness while operating aerial lifts.
Specifications
Products are subject to availability.
| Make | Genie | JCB | JLG | JLG | JLG | Skyjack | Skyjack |
| Model | GS-1932 | S1930E | 1932-RS | 1930ES | ES1932 | SJIII 3219 | SJ3219 |
| Electric Drive | true | true | false | true | true | true | true |
| Fuel Type | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 30% | 25% |
| Ground Bearing Pressure | 159 PSI | 162 PSI | 143 PSI | 109 PSI | 116 PSI | 110 PSI | 168 PSI |
| Indoor Platform Height | 19.2500 ' | 18.7500 ' | 19 ' | 19 ' | 19 ' | 19 ' | 19 ' |
| Occupants Indoor/Outdoor | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 |
| Outdoor Platform Height | 14.6600 ' | 18.7500 ' | 19 ' | 19 ' | 19 ' | 19 ' | 19 ' |
| Overall Dimensions | 72"L x 32"W | 70"L X 30"W | 74"L x 30"W | 73"L x 30"W | 69"L x 32"W x 83"H | 70"L x 32"W | 71"L x 32"W |
| Platform Capacity | 500 lbs | 505 lbs | 500 lbs | 500 lbs | 507 lbs | 550 lbs | 500 lbs |
| Platform Extension | 36 " | 35 " | 36 " | 36 " | 36 " | 36 " | 36 " |
| Platform Extension Capacity | 250 lbs | 265 lbs | 250 lbs | 250 lbs | 265 lbs | 250 lbs | 250 lbs |
| Platform Size | 65" x 30" | 65" x 30" | 72" x 27" | 73" x 30" | 62.7" x 25.4" | 64" x 26" | 61" x 26" |
| Power Source | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Retracted Height | 85 " | 73 " | 79 " | 77 " | 83 " | 65 " | 84 " |
| Step Up Access Deck | Available | Not Available | Available | Available | Available | Available | Available |
| Weight | 2999 lbs | 3739 lbs | 2630 lbs | 2710 lbs | 3450 lbs | 2580 lbs | 3255 lbs |
Safety information
Safety Requirements
- Safety Harness
- Wallet (Training Card)
