CAT CLASS:
0070021

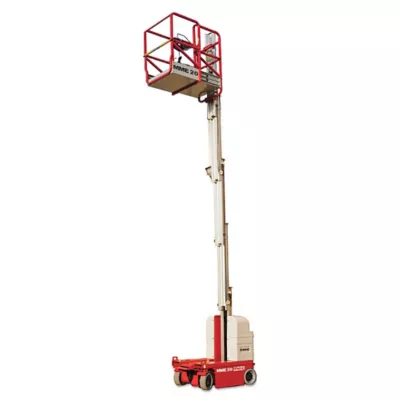

18'-20' Self-Propelled Single Manlift LCS
Overview
Designed to increase productivity on the job, this 18'-20' self-propelled single manlift LCS provides vertical access for one worker with tools & supplies in a variety of indoor maintenance applications. The drivable vertical mast lift has a platform height of up to 20' depending on model and a maximum working height of 26'. These lifts feature solid, non-marking tires to protect finished floors. Additionally, they are energy efficient and environmentally friendly units. This particular unit features an environmentally friendly leak containment system. They are also lightweight for transport in freight elevators and their compact design allows them to be driven through a standard doorway. Further, the all steel platform measures up to 30" x 29" with a weight capacity of 350 lbs. The lift is drivable at full height and features standard 110V AC wiring to the platform. Lastly, it is important to wear a safety harness while operating aerial lifts.
Specifications
Products are subject to availability.
| Make | JLG | MEC |
| Model | E18MCL | MME20 |
| Fuel Type | Electric | Electric |
| Gradeability | 30% | 25% |
| Overall Dimensions | 57.6"L x 30"W x 78"H | 55"L x 30"W x 78.5"H |
| Platform Capacity | 400 lbs | 350 lbs |
| Platform Extension | 19.5000 " | 21 " |
| Platform Height | 18 ' | 20 ' |
| Platform Size | 32" x 29.5" | 29.5" x 28.5" |
| Retracted Height | 78 " | 79 " |
| Transport Width | 30 " | 30 " |
| Weight | 1950 lbs | 2740 lbs |
Safety information
Safety Requirements
- Safety Harness
- Wallet (Training Card)
