CAT CLASS: 0580880

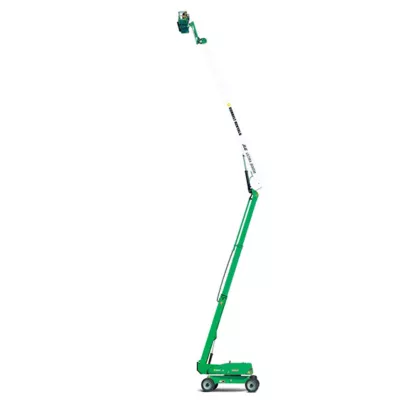

135' Articulating Manlift

Overview

Ideal for outdoor construction and industrial applications that require extensive reach, the 135' articulating manlift will provide lifting versatility with a combination of up, out and over positioning capabilities. The 135' articulating ultra boom lift features automatic traction control to help with navigating over uneven surfaces. The lift has a platform height of 135' and a maximum working height of 141', as well as, a jib that allows for a 160° range of rotation. It also boasts a horizontal outreach of 69' with an up and over reach of 75'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures 96" x 36". Further, the platform capacity of 600 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.

Specifications

Products are subject to availability.

Make Genie
Model Z-135/70 4WD
Gradeability 45%
Horizontal Reach 56.1700 '
Overall Width 97"
Platform Capacity 600 lbs
Platform Height 135 '
Platform Size 96" x 30"
Stowed Height 121"
Up & Over Height 75.5000 '
Weight 44900 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
