CAT CLASS: 0580870

125' Articulating Manlift

Overview

Ideal for outdoor construction and industrial applications that require extensive reach, the 125' articulating manlift will provide lifting versatility with a combination of up, out and over positioning capabilities. The 125' articulating boom lift features automatic traction control to help with navigating over uneven surfaces. The lift has a platform height of 125' and a maximum working height of 131', as well as, a jib that allows for a 130° range of rotation. It also boasts a horizontal outreach of 63' with an up and over reach of 60'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures 96" x 36". Further, the platform capacity of 1,000 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. In addition, the lift is 4-wheel drive operational and has a gradeability rating of 45%. Lastly, it is important to wear a safety harness while operating aerial lifts.

Specifications

Products are subject to availability.

Make JLG
Model 1250 AJP
Fuel Type Diesel or dual fuel
Gradeability 45%

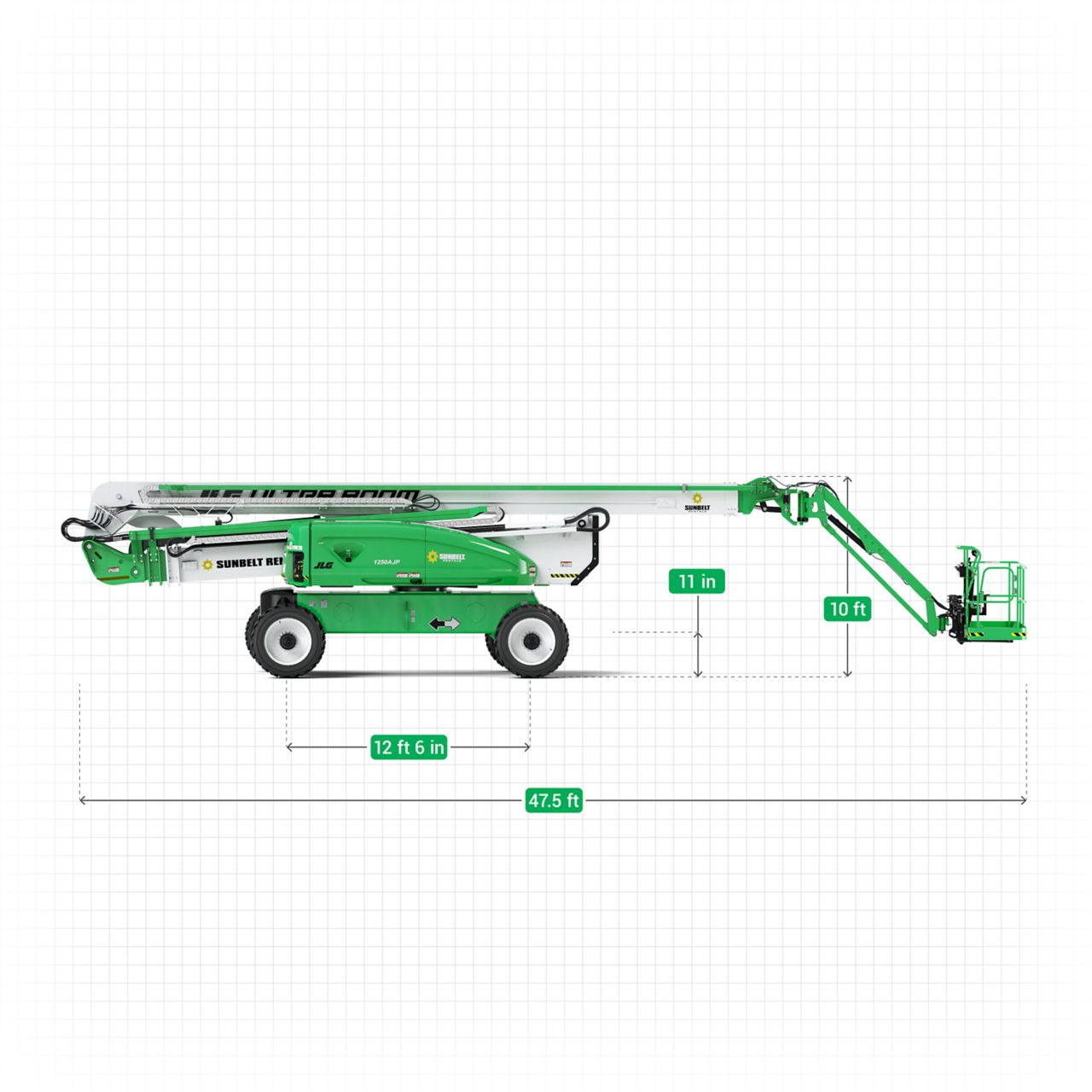

Horizontal Reach 63.1700 '
Overall Width 98"

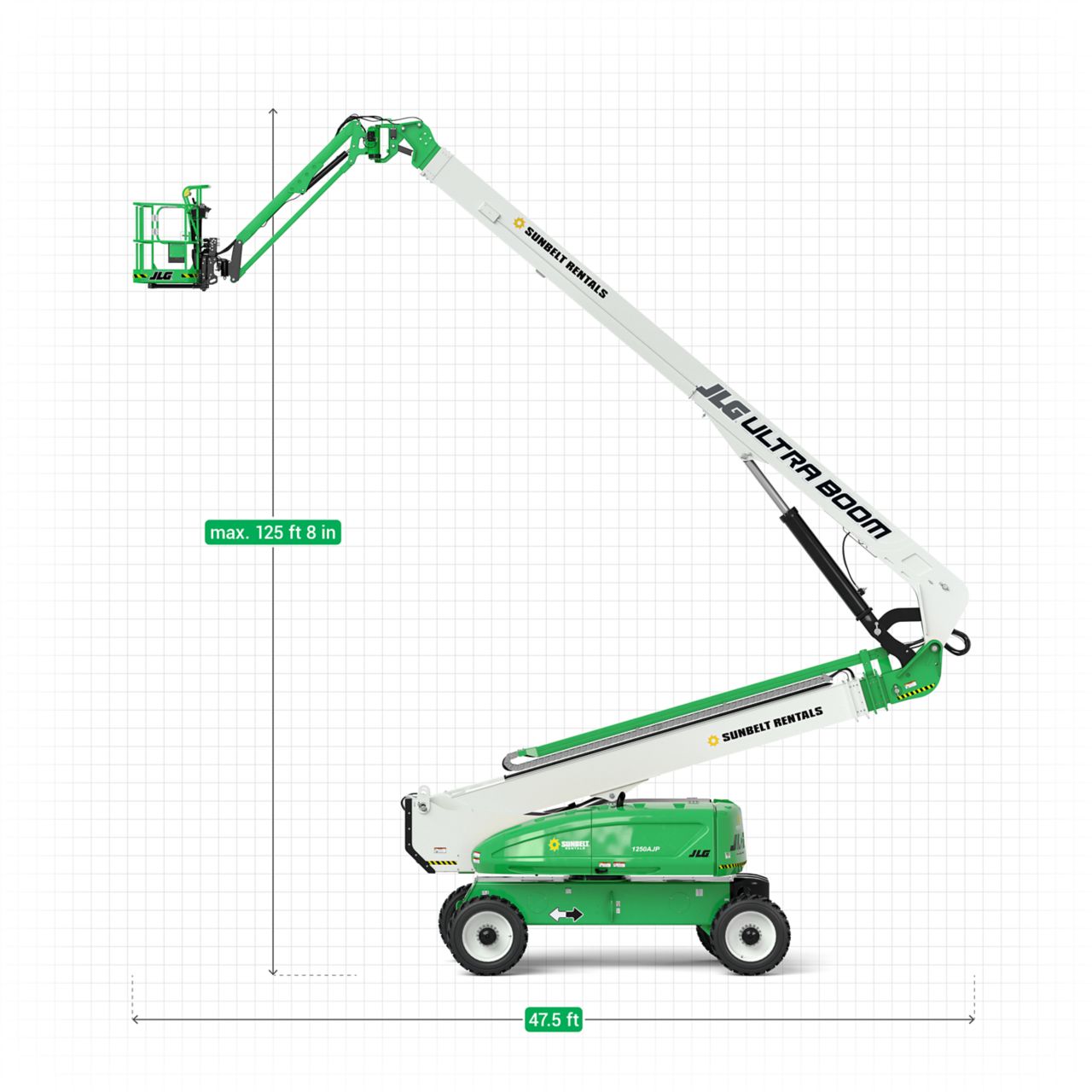

Platform Height 125 '
Platform Size 96" x 36"
Restricted Platform Capacity 1000 lbs
Stowed Height 120"
Unrestricted Platform Capacity 500 lbs
Up & Over Height 60.5000 '
Weight 44000 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
