CAT CLASS: 0580855

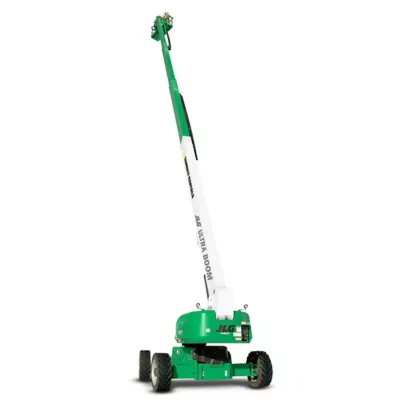

120' Straight Manlift w/ Jib


The 120' straight manlift is ideal for outdoor construction and industrial applications where extensive reach is required. The ultra boom has the ability to lift to 120’ in 95 seconds. It has a platform height of 120' and a maximum working height of 126', as well as, a horizontal outreach of 75'. The platform measures 96" x 36" providing ample working space. Further, the restricted platform capacity of 1,000 lbs and unrestricted capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency. In addition, the lift also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.


Products are subject to availability.

Make Genie JLG
Model S-125 4WD 1200SJP
Fuel Type N.A. Diesel or dual fuel
Gradeability 40% 45%
Horizontal Reach 80 ' 75 '
Platform Capacity 500 lbs N.A.
Platform Height 125 ' 120 '
Platform Size 96" x 36" 96" x 36"
Restricted Platform Capacity N.A. 1000 lbs
Transport Width 98 " 98 "
Unrestricted Platform Capacity N.A. 500 lbs
Weight 44640 lbs 40900 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
