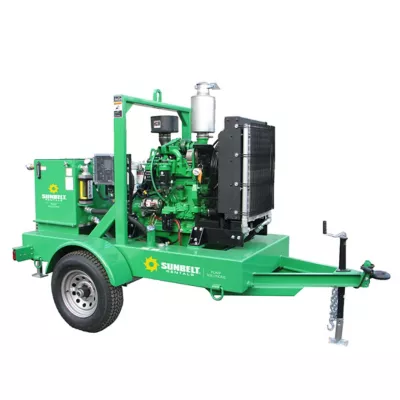

100 HP Diesel Hydraulic Power Pack
Overview
These trailer-mounted, diesel-driven hydraulic power packs are designed for easy portability and to extend periods of operation. The large fuel tank provided can increase run time up to 28.7 hours while on a full load with a fuel cap of 112 gallons. The tank consumes 3.9 gallons per an hour while on full load.
Specifications
Products are subject to availability.
| Make | Gulf Atlantic | Hydratech |
| Model | ZU-100JT | HT100 |
| HP | 100 | 99 |
| Hydraulic Flow | 71 GPM | 53 GPM |
| Onboard Fuel Cap | 112 gal. | 88 gal./hr. |
| Overall Dimensions | 138"L x 72"W x 68"H | 126"L x 66"W x 83"H |
| Return* | 1-1/2" | 1-1/4" |
| Run Time Full Load | 28.7 hrs. | 29.3 hrs. |
| Supply* | 1-1/4" | 1-1/4" |
| Weight | 3100 lbs | 2950 lbs |
Safety information
Safety Requirements
- Hard Hat
- Safety Shoes
