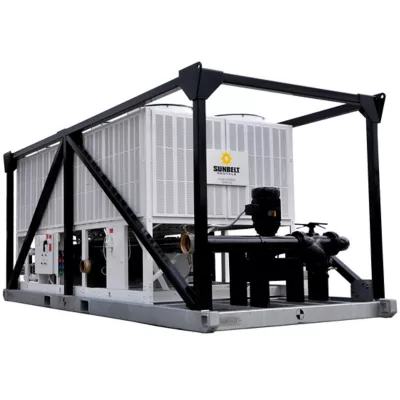

Electric 150-Ton Low-Temperature Chiller System
- Freeze protection to -20F with 3/4" foam insulated evaporator & protective aluminum jacketing, chilled water barrel heaters, external thermostat control for heaters and refrigerant isolation valves (discharge valve)
- 460V/3PH/60HZ power supply
- Dual circuit machine for staging and efficiency
- Freeze protection to -20F with 3/4" foam insulated evaporator & protective aluminum jacketing, chilled water barrel heaters, external thermostat control for heaters and refrigerant isolation valves (discharge valve)
- 460V/3PH/60HZ power supply
- Dual circuit machine for staging and efficiency
Key Features
- Freeze protection to -20F with 3/4" foam insulated evaporator & protective aluminum jacketing, chilled water barrel heaters, external thermostat control for heaters and refrigerant isolation valves (discharge valve)
- 460V/3PH/60HZ power supply
- Dual circuit machine for staging and efficiency
- Designed for ease of operation and mobility
- ASHRAE 90.1 compliance, ARI Standard 550/590, ANSI/NFPA Standard 70
Overview
Key Features
- Freeze protection to -20F with 3/4" foam insulated evaporator & protective aluminum jacketing, chilled water barrel heaters, external thermostat control for heaters and refrigerant isolation valves (discharge valve)
- 460V/3PH/60HZ power supply
- Dual circuit machine for staging and efficiency
- Designed for ease of operation and mobility
- ASHRAE 90.1 compliance, ARI Standard 550/590, ANSI/NFPA Standard 70
Products are subject to availability.
Specifications
| Make | CAPS |
| Model | PCHH-150tc |
| Flow Range | 150-625 GPM |
| Max Refrigerant Side Pressure, PSIG | 450 |
| Max Water Side Pressure, PSIG | 150 |
| Max. Overcurrent Protection (MOCP) | 350 |
| Min Circuit Ampacity | 345 MCA |
| Overall Dimensions | 254 1/2"L x 101 1/2"W x 101 7/8"H |
| Power Requirements | 460V / 3PH / 60HZ |
| Water Volume, Gals. | 66 |
| Weight | 14,500 lbs. |
Specifications & documentation
Products are subject to availability.
Specifications
| Make | CAPS |
| Model | PCHH-150tc |
| Flow Range | 150-625 GPM |
| Max Refrigerant Side Pressure, PSIG | 450 |
| Max Water Side Pressure, PSIG | 150 |
| Max. Overcurrent Protection (MOCP) | 350 |
| Min Circuit Ampacity | 345 MCA |
| Overall Dimensions | 254 1/2"L x 101 1/2"W x 101 7/8"H |
| Power Requirements | 460V / 3PH / 60HZ |
| Water Volume, Gals. | 66 |
| Weight | 14,500 lbs. |
- Eye Protection
- Gloves
Safety Information
It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
- Eye Protection
- Gloves
Sunbelt offers a variety of compatible accessories, add-ons and PPE equipment to add to your rental. Availability may vary based on location.
