CAT CLASS: 1095190

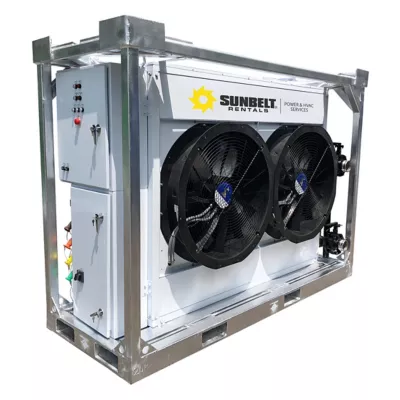

20 Ton Low Temperature Air Handler

20 Ton Low Temperature Air Handler
Key Specs
  • Rated cooling air flow of 24,500 CFM
  • 31.6 kW Tubular electric defrost, with 3 independent stages
  • Maximum rated static pressure of 2.6" in-wg
Key Specs
  • Rated cooling air flow of 24,500 CFM
  • 31.6 kW Tubular electric defrost, with 3 independent stages
  • Maximum rated static pressure of 2.6" in-wg

Key Features

  • Rated cooling air flow of 24,500 CFM
  • 31.6 kW Tubular electric defrost, with 3 independent stages
  • Maximum rated static pressure of 2.6" in-wg
  • Unit capacity exceed 30 tons in cooler operation
  • Elevated capacity of 13+ tons in freezer operation
  • Hydrophilic coated, non-lanced cooling coil fins, design with low fin spacing
The Electric 20-Ton Low-Temperature Air Handler is an ideal solution for cold storage applications and temporary cooler and freezer operations. It boasts a sturdy design, exceeding 30 tons in cooler operation and delivering over 13 tons of capacity in freezer mode. The unit is mounted on a structural steel frame with tube slots for easier mobility and forklift handling.

Overview

The Electric 20-Ton Low-Temperature Air Handler is an ideal solution for cold storage applications and temporary cooler and freezer operations. It boasts a sturdy design, exceeding 30 tons in cooler operation and delivering over 13 tons of capacity in freezer mode. The unit is mounted on a structural steel frame with tube slots for easier mobility and forklift handling.

Key Features

  • Rated cooling air flow of 24,500 CFM
  • 31.6 kW Tubular electric defrost, with 3 independent stages
  • Maximum rated static pressure of 2.6" in-wg
  • Unit capacity exceed 30 tons in cooler operation
  • Elevated capacity of 13+ tons in freezer operation
  • Hydrophilic coated, non-lanced cooling coil fins, design with low fin spacing

Products are subject to availability.

Specifications

Make Smart Family
Model SMT020QLTHEDF
Capacity 20 ton
Min Circuit Ampacity 62 amps
Overall Dimensions 114"L x 44.25"W x 84"H
Power Requirements 460V / 3PH / 60HZ
Weight 4,600 lbs.

Specifications & documentation

Products are subject to availability.

Specifications

Make Smart Family
Model SMT020QLTHEDF
Capacity 20 ton
Min Circuit Ampacity 62 amps
Overall Dimensions 114"L x 44.25"W x 84"H
Power Requirements 460V / 3PH / 60HZ
Weight 4,600 lbs.
  • Eye Protection
  • Gloves

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.

  • Eye Protection
  • Gloves
