CAT CLASS: 1096015

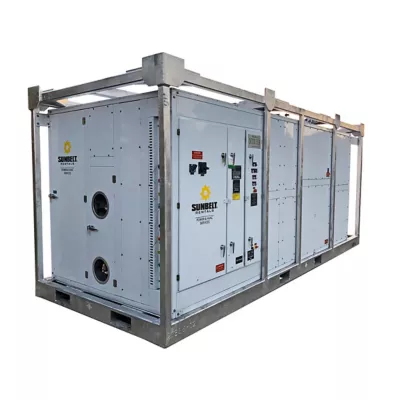

150 Ton Air Handling Unit

150 Ton Air Handling Unit
Key Specs
  • Air flow range of 8,000 - 24,000 CFM
  • Rated cooling air flow 20,000 CFM with 100% outside air
  • Maximum rated static pressure of 14 in-wg
Key Specs
  • Air flow range of 8,000 - 24,000 CFM
  • Rated cooling air flow 20,000 CFM with 100% outside air
  • Maximum rated static pressure of 14 in-wg

Key Features

  • Air flow range of 8,000 - 24,000 CFM
  • Rated cooling air flow 20,000 CFM with 100% outside air
  • Maximum rated static pressure of 14 in-wg
  • Direct drive high-static plenum fan with 50HP TEFC motor
  • 256 kW of finned tubular electric heat (split over 4 even stages)
This unit is designed and constructed for ease of operation and mobility as well as the rigors of everyday use. Our units are mounted on a structural steel frame that incorporates tube slots for forklift handling. Our units also include a certified structural lifting/stacking protective cage for optional overhead positioning with an onsite crane for hard to reach site setup locations.

Overview

This unit is designed and constructed for ease of operation and mobility as well as the rigors of everyday use. Our units are mounted on a structural steel frame that incorporates tube slots for forklift handling. Our units also include a certified structural lifting/stacking protective cage for optional overhead positioning with an onsite crane for hard to reach site setup locations.

Key Features

  • Air flow range of 8,000 - 24,000 CFM
  • Rated cooling air flow 20,000 CFM with 100% outside air
  • Maximum rated static pressure of 14 in-wg
  • Direct drive high-static plenum fan with 50HP TEFC motor
  • 256 kW of finned tubular electric heat (split over 4 even stages)

Products are subject to availability.

Specifications

Make Smart Family
Model SMTAH1D150Q-EH-SH
Capacity 150 ton
Flow Range 8,000-24,000 CFM
Overall Dimensions 232"L x 88"W x 100"H
Power Requirements 460V / 3PH / 60HZ
Weight 10,000 lbs.

Specifications & documentation

Products are subject to availability.

Specifications

Make Smart Family
Model SMTAH1D150Q-EH-SH
Capacity 150 ton
Flow Range 8,000-24,000 CFM
Overall Dimensions 232"L x 88"W x 100"H
Power Requirements 460V / 3PH / 60HZ
Weight 10,000 lbs.
  • Eye Protection
  • Gloves

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.

  • Eye Protection
  • Gloves
