CAT CLASS: 1091121

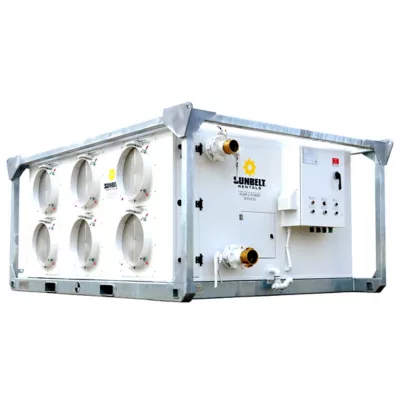

140 Ton Air Handling Unit

140 Ton Air Handling Unit
Key Specs
  • Hot dip galvanized structural lifting/staking skid and integrated tie downs
  • Chilled water temperature and pressure indication (inlet & outlet)
  • Integrated control panel with cam-lock power connections, circuit breaker, magnetic starter
Key Specs
  • Hot dip galvanized structural lifting/staking skid and integrated tie downs
  • Chilled water temperature and pressure indication (inlet & outlet)
  • Integrated control panel with cam-lock power connections, circuit breaker, magnetic starter

Key Features

  • Hot dip galvanized structural lifting/staking skid and integrated tie downs
  • Chilled water temperature and pressure indication (inlet & outlet)
  • Integrated control panel with cam-lock power connections, circuit breaker, magnetic starter
  • Features a potentiometer for VFD control, OFF/ Auto two position switch, power On indicator light and Phase Incorrect indicator light


Air handling units are designed and constructed for ease of operation and mobility as well as the rigors of everyday use. Our units are mounted on a structural tubular steel frame that incorporates tube slots for forklift handling. Our units also includes a certified structural lifting/stacking protective cage for optional overhead positioning with an onsite crane for hard to reach site setup locations. The units are ready for operation with minimal setup of two (2) 4" hose connections and (4) Cam-Lock power cables.

Overview

Air handling units are designed and constructed for ease of operation and mobility as well as the rigors of everyday use. Our units are mounted on a structural tubular steel frame that incorporates tube slots for forklift handling. Our units also includes a certified structural lifting/stacking protective cage for optional overhead positioning with an onsite crane for hard to reach site setup locations. The units are ready for operation with minimal setup of two (2) 4" hose connections and (4) Cam-Lock power cables.

Key Features

  • Hot dip galvanized structural lifting/staking skid and integrated tie downs
  • Chilled water temperature and pressure indication (inlet & outlet)
  • Integrated control panel with cam-lock power connections, circuit breaker, magnetic starter
  • Features a potentiometer for VFD control, OFF/ Auto two position switch, power On indicator light and Phase Incorrect indicator light


Products are subject to availability.

Specifications

Make CAPS
Model PAHV-140TC
Dimensions 98"L x 50"W x 101"H
Min Circuit Ampacity 52 amps
Power Source 460V / 3PH / 60HZ
Weight 4200 lbs

Specifications & documentation

Products are subject to availability.

Specifications

Make CAPS
Model PAHV-140TC
Dimensions 98"L x 50"W x 101"H
Min Circuit Ampacity 52 amps
Power Source 460V / 3PH / 60HZ
Weight 4200 lbs
  • Eye Protection
  • Gloves

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.

  • Eye Protection
  • Gloves
