CAT CLASS: 0110015

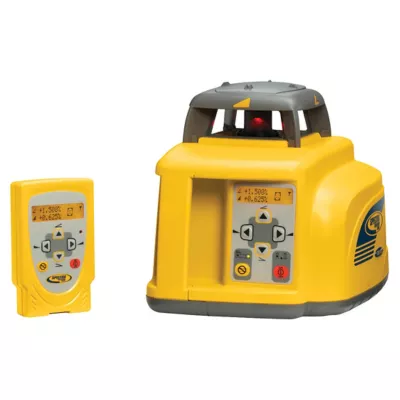

Laser Grade Level

Laser Grade Level
Key Specs
  • Multi-functional laser for leveling, aligning and grading slope
  • Maximum operating diameter of 2,600'
  • Horizontal accuracy ranges from 1/16" to 1/8" at 100'
Key Specs
  • Multi-functional laser for leveling, aligning and grading slope
  • Maximum operating diameter of 2,600'
  • Horizontal accuracy ranges from 1/16" to 1/8" at 100'

Key Features

  • Multi-functional laser for leveling, aligning and grading slope
  • Maximum operating diameter of 2,600'
  • Horizontal accuracy ranges from 1/16" to 1/8" at 100'
A multi-functional laser for leveling, aligning and grading slope uses an unmanned transmitter that provides a 360 degree horizontal reference plane over the entire work site.

Overview

A multi-functional laser for leveling, aligning and grading slope uses an unmanned transmitter that provides a 360 degree horizontal reference plane over the entire work site.

Key Features

  • Multi-functional laser for leveling, aligning and grading slope
  • Maximum operating diameter of 2,600'
  • Horizontal accuracy ranges from 1/16" to 1/8" at 100'

Products are subject to availability.

Specifications

Make Hilti Spectra Precision Spectra Precision Spectra Precision Spectra Precision Spectra Precision Spectra Precision
Model PR 30-HVS GL412 GL422 LL200 LL3001 LL400 LL500
Grade Accuracy N.A. 1/8" @ 100' 1/8" @ 100' N.A. N.A. N.A. N.A.
Grade Range N.A. -10 to +15% single axis -10 to +15% dual axes N.A. N.A. N.A. N.A.
Horizontal Accuracy 1/8" @ 100' N.A. N.A. 3/32" @ 100' 3/32" @ 100' 1/16" @ 100' 1/16" @ 100'
Laser Source Class II/2, visible nm 635 nm Class 3A/3R 650 nm Class 2 780 nm IR/Class 1 635-670 nm visible, Class 3A/3R 650 nm visible, Class 2 670 nm visible, Class 2
Level/Vertical Accuracy N.A. 1/16" @ 100' 1/16" @ 100' N.A. N.A. N.A. N.A.
Operating Diameter 1,650'* 2,000'* 2,600'* 1,000'* 1,000'* 2,600'* 1,600'*
Receiver Model PRA 30 N.A. N.A. HR3200 HR350 HR550 CR600
Self-Leveling Range ± 5° N.A. N.A. ± 30 minutes ± 5° ± 5° ± 11 minutes
Weight 5.5 lbs. 7 lbs. 7 lbs. 6 lbs. 6 lbs. 8 lbs. 8 lbs.

Specifications & documentation

Products are subject to availability.

Specifications

Make Hilti Spectra Precision Spectra Precision Spectra Precision Spectra Precision Spectra Precision Spectra Precision
Model PR 30-HVS GL412 GL422 LL200 LL3001 LL400 LL500
Grade Accuracy N.A. 1/8" @ 100' 1/8" @ 100' N.A. N.A. N.A. N.A.
Grade Range N.A. -10 to +15% single axis -10 to +15% dual axes N.A. N.A. N.A. N.A.
Horizontal Accuracy 1/8" @ 100' N.A. N.A. 3/32" @ 100' 3/32" @ 100' 1/16" @ 100' 1/16" @ 100'
Laser Source Class II/2, visible nm 635 nm Class 3A/3R 650 nm Class 2 780 nm IR/Class 1 635-670 nm visible, Class 3A/3R 650 nm visible, Class 2 670 nm visible, Class 2
Level/Vertical Accuracy N.A. 1/16" @ 100' 1/16" @ 100' N.A. N.A. N.A. N.A.
Operating Diameter 1,650'* 2,000'* 2,600'* 1,000'* 1,000'* 2,600'* 1,600'*
Receiver Model PRA 30 N.A. N.A. HR3200 HR350 HR550 CR600
Self-Leveling Range ± 5° N.A. N.A. ± 30 minutes ± 5° ± 5° ± 11 minutes
Weight 5.5 lbs. 7 lbs. 7 lbs. 6 lbs. 6 lbs. 8 lbs. 8 lbs.
  • Gloves

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
