CAT CLASS:
0810535

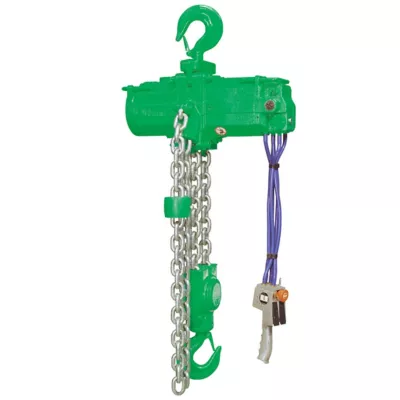

16-18 Ton Air Chain Hoist
Key Specs
- 16 ton/18 ton
- 3.3/1.6 FPM lifting speed (rated load)Â
- 6.6/3.3 FPM lifting speed (no load)
Key Specs
- 16 ton/18 ton
- 3.3/1.6 FPM lifting speed (rated load)Â
- 6.6/3.3 FPM lifting speed (no load)
Key Features
- 16 ton/18 ton
- 3.3/1.6 FPM lifting speed (rated load)Â
- 6.6/3.3 FPM lifting speed (no load)
- 6.9/3.3 FPM lowering speed (rated load)Â
- Weight 529/484 lbs.
Our Electric Chain Hoists utilize a helical/spur gear drive and provides a smooth and quiet operation.This unit has a 16-18 ton capacity and comes equipped with a pendant control. 40', 50' and 60 lift chains are available. Each unit is totally enclosed, high torque motors for heavy-duty operation. The NEMA 3R hoist enclosures and NEMA 4x pendant enclosures provide dependable outdoor operation.
Overview
Our Electric Chain Hoists utilize a helical/spur gear drive and provides a smooth and quiet operation.This unit has a 16-18 ton capacity and comes equipped with a pendant control. 40', 50' and 60 lift chains are available. Each unit is totally enclosed, high torque motors for heavy-duty operation. The NEMA 3R hoist enclosures and NEMA 4x pendant enclosures provide dependable outdoor operation.
Key Features
- 16 ton/18 ton
- 3.3/1.6 FPM lifting speed (rated load)Â
- 6.6/3.3 FPM lifting speed (no load)
- 6.9/3.3 FPM lowering speed (rated load)Â
- Weight 529/484 lbs.
Products are subject to availability.
Specifications
| Make | Ingersoll-Rand | JD Neuhaus |
| Model | LCA180T1C19MO | Profi 16TI |
| Air Requirement | 124 CFM @ 90 PSI | 195 CFM @ 85 PSI |
| Capacity | 18 ton | 16 ton |
| Chain Falls | 3 | 3 |
| Lifting Speed _(No Load) | 3.3 FPM | 6.6 FPM |
| Lifting Speed _(Rated Load) | 1.6 FPM | 3.3 FPM |
| Weight | 484 lbs. | 529 lbs. |
Specifications & documentation
Products are subject to availability.
Specifications
| Make | Ingersoll-Rand | JD Neuhaus |
| Model | LCA180T1C19MO | Profi 16TI |
| Air Requirement | 124 CFM @ 90 PSI | 195 CFM @ 85 PSI |
| Capacity | 18 ton | 16 ton |
| Chain Falls | 3 | 3 |
| Lifting Speed _(No Load) | 3.3 FPM | 6.6 FPM |
| Lifting Speed _(Rated Load) | 1.6 FPM | 3.3 FPM |
| Weight | 484 lbs. | 529 lbs. |
