CAT CLASS: 0810510

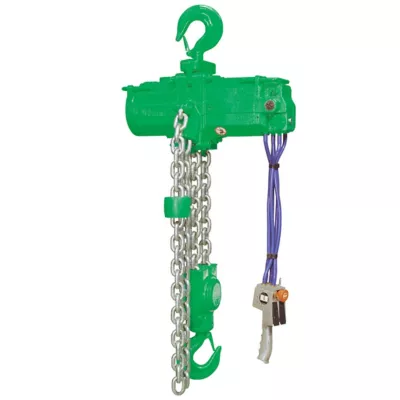

1 Ton Air Chain Hoist

1 Ton Air Chain Hoist
Key Specs
  • 1 ton capacity
  • 26.0 FPM lifting speed (rated load)
  • 40.0 FPM lifting speed (no load)
Key Specs
  • 1 ton capacity
  • 26.0 FPM lifting speed (rated load)
  • 40.0 FPM lifting speed (no load)

Key Features

  • 1 ton capacity
  • 26.0 FPM lifting speed (rated load)
  • 40.0 FPM lifting speed (no load)
  • 37.0 FPM lowering speed (rated load)
  • Air requirement 70 CFM @ 90 PSI
  • Weighs 84 lbs.
Our Air Chain Hoists are ideal for lifting application where a compressed air supply is available. They provide freedom from electrical shock and are ideal for use in flammable environments with no electrical hazard. We offer models ranging from 1-ton to 25 ton capacity. Other features include accurate load spotting and low maintenance requirements. Each Air Chain Hoist is 100% duty cycle rated for continuous operation and has latch-type hooks, top and bottom.

Overview

Our Air Chain Hoists are ideal for lifting application where a compressed air supply is available. They provide freedom from electrical shock and are ideal for use in flammable environments with no electrical hazard. We offer models ranging from 1-ton to 25 ton capacity. Other features include accurate load spotting and low maintenance requirements. Each Air Chain Hoist is 100% duty cycle rated for continuous operation and has latch-type hooks, top and bottom.

Key Features

  • 1 ton capacity
  • 26.0 FPM lifting speed (rated load)
  • 40.0 FPM lifting speed (no load)
  • 37.0 FPM lowering speed (rated load)
  • Air requirement 70 CFM @ 90 PSI
  • Weighs 84 lbs.

Products are subject to availability.

Specifications

Make Ingersoll-Rand
Model HL100K-OC30-CO
Air Requirement 70 CFM @ 90 PSI
Capacity 1 ton
Chain Falls 1
Lifting Speed _(No Load) 40 FPM
Lifting Speed _(Rated Load) 25 FPM
Weight 84 lbs.

Specifications & documentation

Products are subject to availability.

Specifications

Make Ingersoll-Rand
Model HL100K-OC30-CO
Air Requirement 70 CFM @ 90 PSI
Capacity 1 ton
Chain Falls 1
Lifting Speed _(No Load) 40 FPM
Lifting Speed _(Rated Load) 25 FPM
Weight 84 lbs.
  • Eye Protection
  • Gloves

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.

  • Eye Protection
  • Gloves
