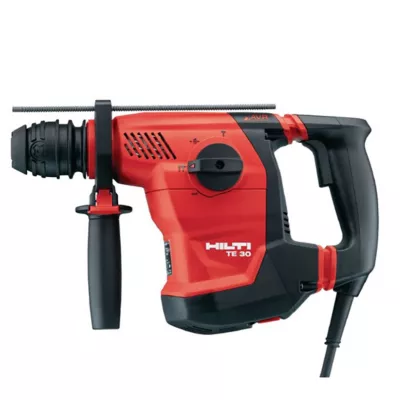

Combination Hammer 1-1/4" & Larger

Overview

Key Features

Use for drilling and anchoring in concrete, masonry, wood, and steel
Adjustable speed and impact force
Operates on 120 V power
Hammer & rotation mode and rotation only

A large combination hammer operate in hammer & rotation or hammer only modes and utilize SDS-max carbide bits and chiseling tools. They can also accommodate core bits for larger diameter drilling. This drill operates on 120V power and has a bit capacity of 1-1/4" and larger.

Overview

A large combination hammer operate in hammer & rotation or hammer only modes and utilize SDS-max carbide bits and chiseling tools. They can also accommodate core bits for larger diameter drilling. This drill operates on 120V power and has a bit capacity of 1-1/4" and larger.

Key Features

Use for drilling and anchoring in concrete, masonry, wood, and steel
Adjustable speed and impact force
Operates on 120 V power
Hammer & rotation mode and rotation only

Specifications & documentation

Products are subject to availability.

Specifications

Make	Bosch	Hilti	Hilti	Makita
Model	RH850VC	TE 50-AVR	TE-30-C-AVR	HR5212C
AC Amps/ DC Volts	15 AMPS	N.A.	N.A.	15 AMPS
Amp Rating	N.A.	N.A.	8.6000	N.A.
Carbide Bit Capacity	1 7/8	15/32 - 1-9/16	5/32 - 1 3/32	3/4" - 1-9/16"
Core Bit Capacity	6"	6"	6"	6-1/4"
Full Hammering Frequency	N.A.	3510 impacts / minute	4,500	N.A.
Impact Range	1380 - 2750 BPM	0 - 3510 BPM	0-4500 impacts per minute	1,100 - 2,250 BPM
Max Impact_Energy/Blow	9.3 ft lbs	4.4 ft lbs	2.7 ft. lbs.	14 ft. lbs.
Operating Modes	H&R/H	H&R/H	H,R/H&C	H&R/H
Speed Range	305 RPM	0-360 RPM	0-1,100 RPM	0-260 RPM
Tool Type	SDS-max	SDS-max	SDS-plus	SDS-max
Weight	19.7000 lbs	13.4000 lbs	9.3000 lbs	26.2000 lbs

Specifications & documentation

Products are subject to availability.

Specifications

Make	Bosch	Hilti	Hilti	Makita
Model	RH850VC	TE 50-AVR	TE-30-C-AVR	HR5212C
AC Amps/ DC Volts	15 AMPS	N.A.	N.A.	15 AMPS
Amp Rating	N.A.	N.A.	8.6000	N.A.
Carbide Bit Capacity	1 7/8	15/32 - 1-9/16	5/32 - 1 3/32	3/4" - 1-9/16"
Core Bit Capacity	6"	6"	6"	6-1/4"
Full Hammering Frequency	N.A.	3510 impacts / minute	4,500	N.A.
Impact Range	1380 - 2750 BPM	0 - 3510 BPM	0-4500 impacts per minute	1,100 - 2,250 BPM
Max Impact_Energy/Blow	9.3 ft lbs	4.4 ft lbs	2.7 ft. lbs.	14 ft. lbs.
Operating Modes	H&R/H	H&R/H	H,R/H&C	H&R/H
Speed Range	305 RPM	0-360 RPM	0-1,100 RPM	0-260 RPM
Tool Type	SDS-max	SDS-max	SDS-plus	SDS-max
Weight	19.7000 lbs	13.4000 lbs	9.3000 lbs	26.2000 lbs

Safety Information

Eye Protection

Gloves

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
