CAT CLASS: 0580607

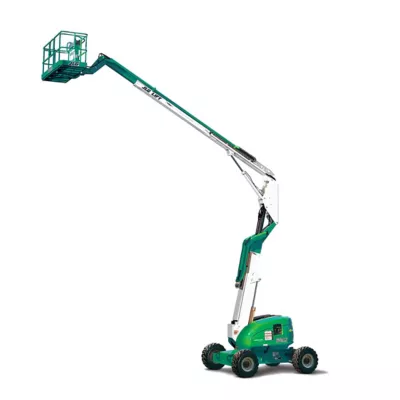

60' Articulating Manlift w/ Jib

60' Articulating Manlift w/ Jib
Key Specs
  • 4WD operational
  • Platform capacity 500 lbs
  • Horizontal reach over 39'
Key Specs
  • 4WD operational
  • Platform capacity 500 lbs
  • Horizontal reach over 39'

Key Features

  • 4WD operational
  • Platform capacity 500 lbs
  • Horizontal reach over 39'
Ideal for outdoor construction and industrial applications that require extensive reach, the 60' articulating manlift will provide lifting versatility with a combination of up, out and over positioning capabilities. The 60' articulating boom lift features automatic traction control to help with navigating over uneven surfaces. The lift has a platform height of 60' and a maximum working height of 66', as well as, a jib that allows for a 135° range of rotation. Additionally, it also boasts a horizontal outreach of up to 39' with an up and over reach of 26'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures up to 96" x 36" depending on the model. Further, the platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. The lift is 4-wheel drive operational and has a gradeability rating of 45%. Lastly, it is important to wear a safety harness while operating aerial lifts.

Overview

Ideal for outdoor construction and industrial applications that require extensive reach, the 60' articulating manlift will provide lifting versatility with a combination of up, out and over positioning capabilities. The 60' articulating boom lift features automatic traction control to help with navigating over uneven surfaces. The lift has a platform height of 60' and a maximum working height of 66', as well as, a jib that allows for a 135° range of rotation. Additionally, it also boasts a horizontal outreach of up to 39' with an up and over reach of 26'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures up to 96" x 36" depending on the model. Further, the platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. The lift is 4-wheel drive operational and has a gradeability rating of 45%. Lastly, it is important to wear a safety harness while operating aerial lifts.

Key Features

  • 4WD operational
  • Platform capacity 500 lbs
  • Horizontal reach over 39'

Products are subject to availability.

Specifications

Make Genie JLG JLG
Model Z-62/40 600AJ 600AJN
Fuel Type Diesel or dual fuel Diesel or dual fuel Diesel or dual fuel
Gradeability 45% 45% 45%
Horizontal Reach 40.7500 ' 39.7500 ' 39.7500 '
Overall Width 98 " 98 " 84 "
Platform Capacity 500 lbs 500 lbs 500 lbs
Platform Height 62 ' 60 ' 60 '
Platform Size 72" x 30" 96" x 36" 96" x 36"
Stowed Height 100" 100" 100"
Up & Over Height 25.5833 ' 26.5833 ' 26.5833 '
Weight 22690 lbs 22691 lbs 24200 lbs

Specifications & documentation

Products are subject to availability.

Specifications

Make Genie JLG JLG
Model Z-62/40 600AJ 600AJN
Fuel Type Diesel or dual fuel Diesel or dual fuel Diesel or dual fuel
Gradeability 45% 45% 45%
Horizontal Reach 40.7500 ' 39.7500 ' 39.7500 '
Overall Width 98 " 98 " 84 "
Platform Capacity 500 lbs 500 lbs 500 lbs
Platform Height 62 ' 60 ' 60 '
Platform Size 72" x 30" 96" x 36" 96" x 36"
Stowed Height 100" 100" 100"
Up & Over Height 25.5833 ' 26.5833 ' 26.5833 '
Weight 22690 lbs 22691 lbs 24200 lbs
  • Safety Harness
  • Wallet (Training Card)

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.

  • Safety Harness
  • Wallet (Training Card)
