CAT CLASS: 0580419

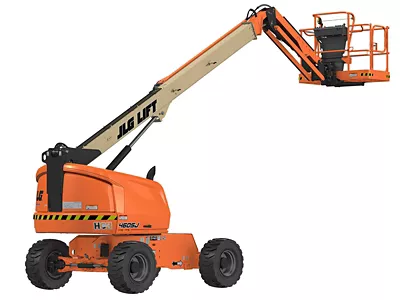

45' Straight Manlift w/ Jib High Capacity

45' Straight Manlift w/ Jib High Capacity
Key Specs
  • Working height of 51'
  • Horizontal outreach of 39' depending on the model
  • Unrestricted platform capacity of 660 lbs
Key Specs
  • Working height of 51'
  • Horizontal outreach of 39' depending on the model
  • Unrestricted platform capacity of 660 lbs

Key Features

  • Working height of 51'
  • Horizontal outreach of 39' depending on the model
  • Unrestricted platform capacity of 660 lbs
  • 4WD Operation
  • 360° continuous rotation turntable
  • 110V AC receptacle in the platform
  • 130° - Jib range of articulation
The 45 feet high capacity, straight manlift is a powerful, versatile telescopic boom lift designed for both indoor and outdoor use, offering a maximum working height of 51 feet and a horizontal outreach of up to 39 feet depending on the model. Its 4WD capability and tight turning radius ensure excellent maneuverability on rugged and confined job sites, while the automatic leveling jacks provide enhanced stability. With an unrestricted platform capacity of 660 pounds and restricted capacity of 1,000 pounds, as well as user-friendly controls, it supports multiple operators and tools efficiently. Built for durability and reliable performance, the 45 foot lift with a jib is ideal for construction, maintenance, and high-reach applications, making it a top choice for demanding tasks.

Overview

The 45 feet high capacity, straight manlift is a powerful, versatile telescopic boom lift designed for both indoor and outdoor use, offering a maximum working height of 51 feet and a horizontal outreach of up to 39 feet depending on the model. Its 4WD capability and tight turning radius ensure excellent maneuverability on rugged and confined job sites, while the automatic leveling jacks provide enhanced stability. With an unrestricted platform capacity of 660 pounds and restricted capacity of 1,000 pounds, as well as user-friendly controls, it supports multiple operators and tools efficiently. Built for durability and reliable performance, the 45 foot lift with a jib is ideal for construction, maintenance, and high-reach applications, making it a top choice for demanding tasks.

Key Features

  • Working height of 51'
  • Horizontal outreach of 39' depending on the model
  • Unrestricted platform capacity of 660 lbs
  • 4WD Operation
  • 360° continuous rotation turntable
  • 110V AC receptacle in the platform
  • 130° - Jib range of articulation

Products are subject to availability.

Specifications

Make Genie JLG
Model S-45 XC 460SJ HC3
Fuel Type Diesel Diesel
Gradeability 45% 45%
Horizontal Reach 36.1700 ' 39 '
Overall Width 98 " 91 "
Platform Height 45 ' 46 '
Platform Size 96" x 36" 96" x 36"
Restricted Platform Capacity 1000 lbs 1000 lbs
Unrestricted Platform Capacity 660 lbs 660 lbs
Weight 15800 lbs 20516 lbs

Specifications & documentation

Products are subject to availability.

Specifications

Make Genie JLG
Model S-45 XC 460SJ HC3
Fuel Type Diesel Diesel
Gradeability 45% 45%
Horizontal Reach 36.1700 ' 39 '
Overall Width 98 " 91 "
Platform Height 45 ' 46 '
Platform Size 96" x 36" 96" x 36"
Restricted Platform Capacity 1000 lbs 1000 lbs
Unrestricted Platform Capacity 660 lbs 660 lbs
Weight 15800 lbs 20516 lbs
  • Safety Harness
  • Wallet (Training Card)

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
