CAT CLASS: 0070405

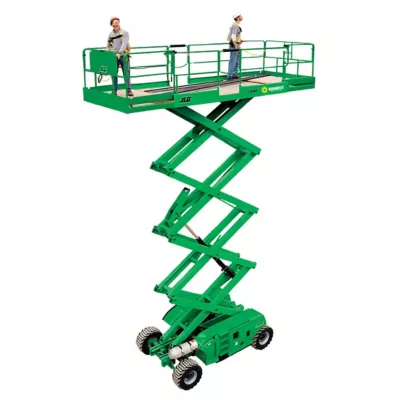

40' Rough Terrain Scissor Lift w/ Outriggers

40' Rough Terrain Scissor Lift w/ Outriggers
Key Specs
  • Equipped with outriggers for stabilization
  • Diesel or dual fuel models available
  • Up to 35% gradeability
Key Specs
  • Equipped with outriggers for stabilization
  • Diesel or dual fuel models available
  • Up to 35% gradeability

Key Features

  • Equipped with outriggers for stabilization
  • Diesel or dual fuel models available
  • Up to 35% gradeability
  • Rough terrain tires with 4WD
The 40' rough terrain scissor lift with outriggers is perfect for increasing output in tough and uneven job site conditions. The lifts have a platform height of up to 43’ and a maximum working height of 50' depending on the model. The platform measures up to 156” x 72” depending on the model, with a 48" deck extension providing ample working space. Further, the platform capacity of between 800-1700 lbs allows for multiple workers with tools and supplies for optimal efficiency. The RT scissor lift is also equipped with outriggers for increased stability. The 4WD lift is able to drive on a grade of up to 30% to keep you moving. In addition, the lifts also features a standard 110V AC receptacle in the platform for a convenient power source while at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.

Overview

The 40' rough terrain scissor lift with outriggers is perfect for increasing output in tough and uneven job site conditions. The lifts have a platform height of up to 43’ and a maximum working height of 50' depending on the model. The platform measures up to 156” x 72” depending on the model, with a 48" deck extension providing ample working space. Further, the platform capacity of between 800-1700 lbs allows for multiple workers with tools and supplies for optimal efficiency. The RT scissor lift is also equipped with outriggers for increased stability. The 4WD lift is able to drive on a grade of up to 30% to keep you moving. In addition, the lifts also features a standard 110V AC receptacle in the platform for a convenient power source while at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.

Key Features

  • Equipped with outriggers for stabilization
  • Diesel or dual fuel models available
  • Up to 35% gradeability
  • Rough terrain tires with 4WD

Products are subject to availability.

Specifications

Make Genie Genie Skyjack
Model GS-4390 RT GS-4069 RT SJ 8841
Fuel Type Diesel Diesel or dual fuel Diesel or dual fuel
Gradeability 50% 35% 30%
Overall Dimensions 192"L x 90"W 123"L x 69"W 163"L x 87"W
Overall Width N.A. N.A. 87 "
Platform Capacity 1500 lbs 800 lbs 1500 lbs
Platform Extension 60 " 60 " 48 "
Platform Height 43 ' 40 ' 41 '
Platform Size 156" x 72" 120" x 63" 134" x 67"
Retracted Height 116 " 108 " 114 "
Weight 14642 lbs 10245 lbs 10880 lbs

Specifications & documentation

Products are subject to availability.

Specifications

Make Genie Genie Skyjack
Model GS-4390 RT GS-4069 RT SJ 8841
Fuel Type Diesel Diesel or dual fuel Diesel or dual fuel
Gradeability 50% 35% 30%
Overall Dimensions 192"L x 90"W 123"L x 69"W 163"L x 87"W
Overall Width N.A. N.A. 87 "
Platform Capacity 1500 lbs 800 lbs 1500 lbs
Platform Extension 60 " 60 " 48 "
Platform Height 43 ' 40 ' 41 '
Platform Size 156" x 72" 120" x 63" 134" x 67"
Retracted Height 116 " 108 " 114 "
Weight 14642 lbs 10245 lbs 10880 lbs
  • Safety Harness
  • Wallet (Training Card)

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.

  • Safety Harness
  • Wallet (Training Card)
